What does the L6227PD actually do?
The L6227PD is a fully integrated motor driver from STMicroelectronics' STSPIN L62 series, combining control logic and a DMOS power stage in one 36-pin PowerSO-36 package. It drives one bipolar stepper motor or two brushed DC motors using four half-bridge outputs, each rated for 1.4 A continuous at supply voltages from 8 V to 52 V.
Key ratings and what they mean for your BOM
The 1.4 A per-channel output current is the continuous rating at the half-bridge — it sets the torque ceiling for a bipolar stepper or the stall-current limit for a brushed DC motor. The 8 V to 52 V supply range covers common industrial and automotive rails (12 V, 24 V, 48 V) without needing an external regulator for the power stage. The DMOS output stage integrates the freewheeling diodes and sense resistors, so the external BOM is just the motor, a few bypass caps, and the parallel interface lines. The parallel interface means you drive the four half-bridge inputs directly from a microcontroller's GPIO — no SPI or PWM timer needed for basic step/direction control. Junction temperature range of -25°C to 125°C (TJ) covers most indoor industrial and automotive cabin environments.

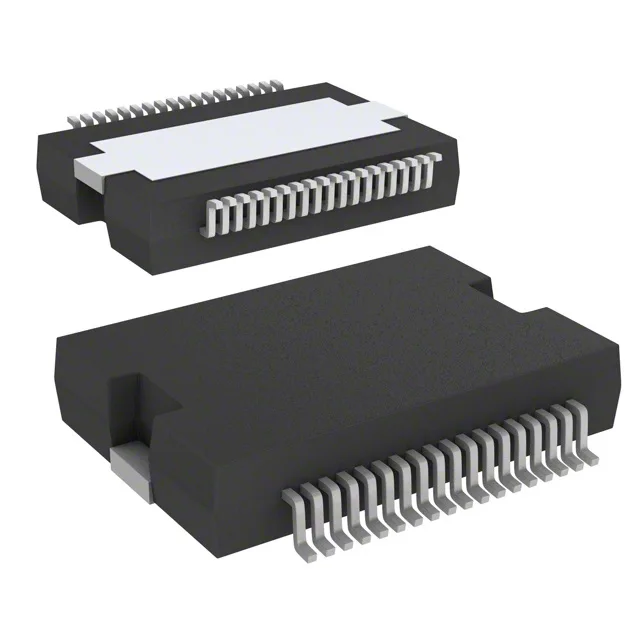

The L6227PD comes in a 36-BSSOP package with exposed pad, also called PowerSO-36. It is a surface-mount part supplied in tube format — not tape-and-reel.
