What the 800 V / 12 A rating means on the bench
The BTA12-800BRG is a standard triac from STMicroelectronics' BTA12 family, rated for 800 V off-state blocking and 12 A RMS on-state current in a TO-220AB insulated package. The 800 V off-state voltage means it can switch loads on a 480 VAC line with margin — the peak of a 480 VAC sine wave is about 679 V, so the 800 V rating gives 121 V of headroom for transients. The 12 A RMS rating is the continuous current limit at a 25 °C case temperature; derate for higher ambient or if the heatsink is undersized. The 126 A non-repetitive surge current at 60 Hz (120 A at 50 Hz) tells you what the die can survive for one half-cycle — motor inrush, capacitor charging, or a lamp cold-start. If your load draws more than 126 A peak even once, this part will crack.
Gate drive and holding current — what triggers it and what keeps it on
Gate trigger current (Igt) is 50 mA max, and gate trigger voltage (Vgt) is 1.3 V max. That means a standard microcontroller GPIO with a current-limiting resistor, or an MOC30xx optocoupler, can fire it without a separate driver stage. The 50 mA holding current (Ih) means the triac stays latched as long as the load current stays above about 50 mA — below that, it drops out at the next zero-cross. For a very light load (a small relay coil or an LED indicator), the triac may not stay on; you'll see half-wave conduction or chatter.

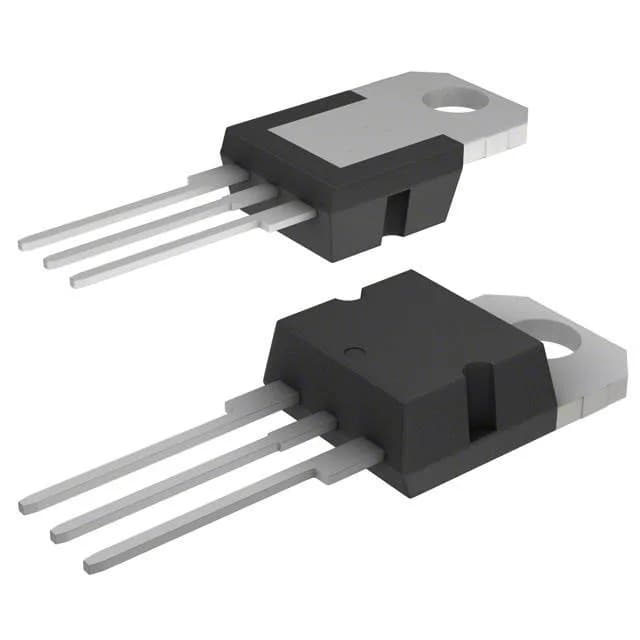

Package and mounting — TO-220AB insulated saves a mica washer
The TO-220AB insulated package means the metal tab is electrically isolated from the die — no mica washer or thermal pad needed when bolting to a heatsink. The mounting hole is standard for a #6 or M3 screw. Through-hole mounting is straightforward for prototype builds and low-volume production; for high-volume, a TO-220 is slower to insert than a surface-mount D²PAK, but the insulated tab simplifies assembly.
Sourcing and availability
This part is sourced through independent distribution channels. No stock-holding claim — quoted to order against the BOM quantity.
