ROHM Semiconductor UMA9NTR — Memory (DRAM / SRAM / Flash / EEPROM)
ROHM Semiconductor

UMA9NTR dual PNP pre-biased transistor, 50V 100mA 250MHz

MPNUMA9NTR
End of Life

ROHM Semiconductor UMA9NTR, dual PNP pre-biased transistor pair, 50V Vce breakdown, 100mA Ic, 250MHz transition frequency, 10kΩ base and emitter-base resistors, 150mW power dissipation, surface mount UMT5 package.

$0.39Ref. price · indicative, final on quote
UMA9NTR datasheet
Packaging5-TSSOP, SC-70-5, SOT-353
StockContact for availability
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

UMA9NTR Technical Specifications
ParameterValue
Mounting typeSurface Mount
FET type2 PNP - Pre-Biased (Dual)
Voltage - collector emitter breakdown50V
Current - collector (Ic)100mA
Current - collector cutoff500nA
DC current gain (hFE) (Min) @ ic, vce20 @ 5mA, 5V
Power - max150mW
Frequency250MHz
PackageTape & Reel (TR); Cut Tape (CT)
Case5-TSSOP, SC-70-5, SOT-353
Resistor - base (R1)10kOhms
Resistor - emitter base (R2)10kOhms
Vce saturation (Max) @ ib, ic300mV @ 500µA, 10mA

Product details

The ROHM Semiconductor UMA9NTR packs two PNP transistors with integrated bias resistors into a single UMT5 package. Each transistor has a 10kΩ resistor in series with the base and a 10kΩ resistor from base to emitter, so the pair turns on when the base drive exceeds about 0.7 V at the input node — no external base resistors needed. Collector-emitter breakdown is rated at 50 V, continuous collector current at 100 mA, and the 250 MHz transition frequency supports switching applications up into the low-MHz range. Total package dissipation is 150 mW, which sets the thermal budget in a dense layout.

Package and footprint fit

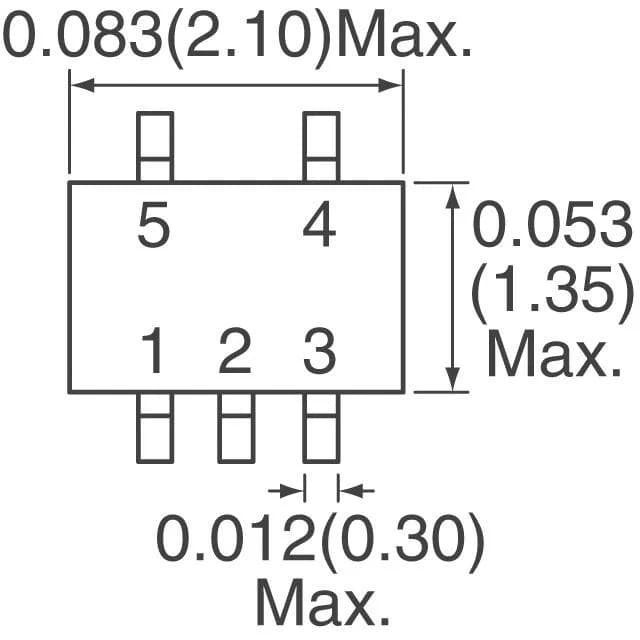

The UMA9NTR is supplied in a surface-mount UMT5 package (also designated 5-TSSOP, SC-70-5, SOT-353). The five-pin footprint is shared across ROHM's UMT5 pre-biased transistor family, so the same PCB land pattern works for both PNP and NPN variants. Shipping options include Tape & Reel and Cut Tape.

Lifecycle and compliance

The part is RoHS3 compliant.

Frequently asked questions

When sourcing UMA9NTR, what's the closest functional second-source — UMH9NTN?

The UMH9NTN is the NPN dual pre-biased complement to the UMA9NTR. Both share the same UMT5 package, 50 V breakdown, 100 mA collector current, and 250 MHz fT. The key difference is polarity: UMA9NTR uses two PNP transistors, while UMH9NTN uses two NPN transistors. They are not pin-compatible substitutes for each other — the circuit must be designed for the correct polarity. For a PNP-to-PNP alternative, the EMG9T2R is a dual PNP pre-biased pair with identical 10kΩ R1 and R2 values, same package, and same 150 mW power dissipation.

What compliance documentation does ROHM provide for UMA9NTR?

The UMA9NTR is RoHS3 compliant. ROHM typically provides a declaration of compliance and material composition data upon request through the distribution channel.
