RSJ151P10TL
ROHM Semiconductor
MOSFET P-CH 100V 15A LPTS
[IN STOCK] In Stock: 17 pcs
MOQ 1 · Tape & Reel (TR); Cut Tape (CT) · RoHS · EIA-481 · DAP/DDP · T/T
Technical specifications
| Parameter / Attribute | Specification / Value |
|---|---|
| FET type | P-Channel |
| Mounting | Surface Mount |
| Drain to source voltage | 100 V |
| Drive voltage (Max rds on, min rds on) | 4V, 10V |
| Current - continuous drain (Id) @ 25°C | 15A (Tc) |
| Power dissipation | 1.35W (Ta), 50W (Tc) |
| Operating temperature | 150°C (TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Vgs | ±20V |
| Technology | MOSFET (Metal Oxide) |

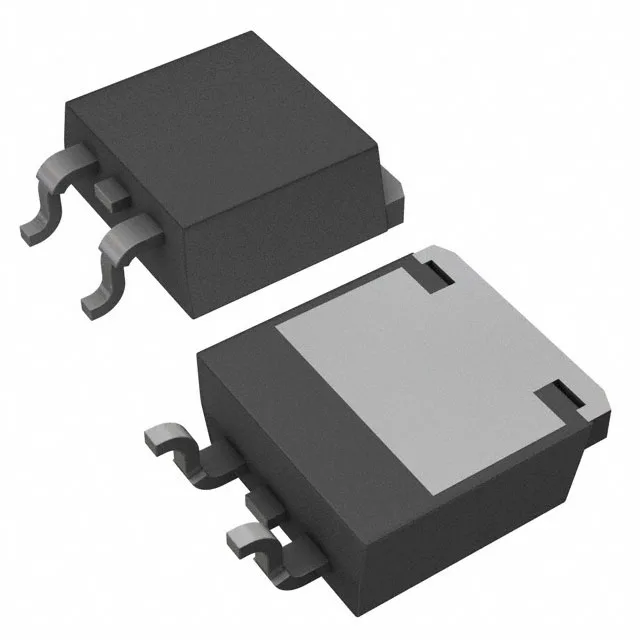

| Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Vgs(th) (Max) @ id | 2.5V @ 1mA |
| Rds on (Max) @ id, vgs | 120mOhm @ 15A, 10V |
| Gate charge (Qg) (Max) @ vgs | 64 nC @ 10 V |
| Input capacitance (Ciss) (Max) @ vds | 3800 pF @ 25 V |
