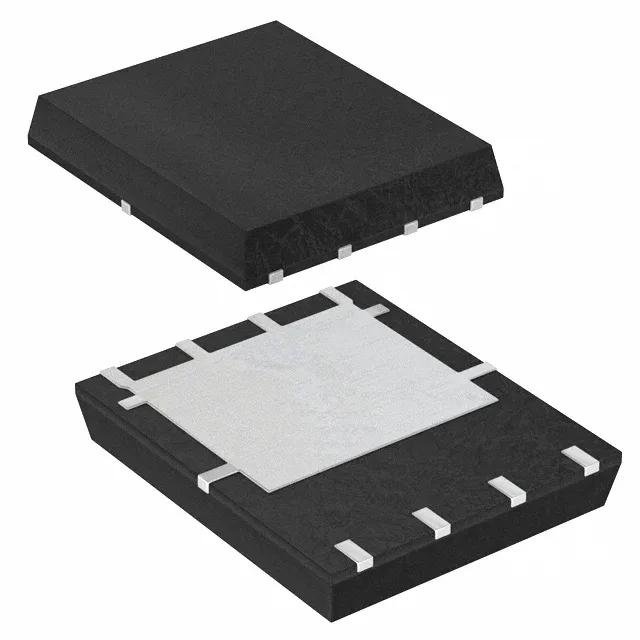

ROHM Semiconductor RS1E240GNTB
MPNRS1E240GNTB
End of Life
MOSFET N-CH 30V 24A 8HSOP
$0.96Ref. price · indicative, final on quote
Packaging8-PowerTDFN
RoHSROHS3 Compliant
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| FET type | N-Channel |
| Mounting | Surface Mount |
| Drain to source voltage | 30 V |
| Drive voltage (Max rds on, min rds on) | 4.5V, 10V |
| Current - continuous drain (Id) @ 25°C | 24A (Ta) |
| Power dissipation | 3W (Ta), 27.4W (Tc) |
| Operating temperature | 150°C (TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Vgs | ±20V |
| Technology | MOSFET (Metal Oxide) |
| Case | 8-PowerTDFN |
| Vgs(th) (Max) @ id | 2.5V @ 1mA |
| Rds on (Max) @ id, vgs | 3.3mOhm @ 24A, 10V |
| Gate charge (Qg) (Max) @ vgs | 23 nC @ 10 V |
| Input capacitance (Ciss) (Max) @ vds | 1500 pF @ 15 V |
