1200 V, 30 A trench field-stop IGBT — what it handles

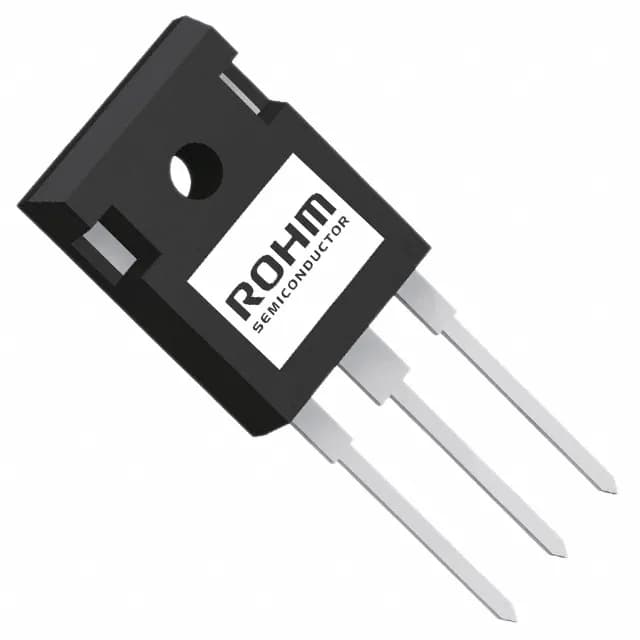

The RGS30TSX2DGC11 is a 1200 V, 30 A trench field-stop IGBT in a through-hole TO-247N package, designed for hard-switched power stages in motor drives, UPS, and industrial inverters where conduction and switching losses both matter. Rated junction temperature extends to 175 °C.
Switching losses and gate drive budget
At the test condition of 600 V, 15 A, 10 Ω gate resistor, and 15 V gate drive, the turn-on energy is 740 µJ and turn-off is 600 µJ. Total gate charge is 41 nC. Turn-on and turn-off delay times are 30 ns and 70 ns respectively at 25 °C — fast enough that the switching loss is dominated by the current/voltage overlap, not the gate-driver propagation delay.
Conduction loss and thermal design
Vce(sat) is 2.1 V typical at 15 V gate drive and 15 A collector current — at full rated current of 30 A the conduction drop will be higher, but 2.1 V at half-rated current is a good anchor for loss estimation in partial-load designs like variable-frequency drives. Maximum power dissipation is 267 W; the TO-247N package with a properly greased heatsink can handle that, but the junction-to-case thermal resistance must be factored into the heatsink selection — the 175 °C Tj max gives some margin if the sink is undersized.
Active production, ROHS3, and sourcing posture
It is ROHS3 compliant, so it clears the EU material restrictions for new equipment. No stock-holding claim — the BOM quantity is quoted per request.
