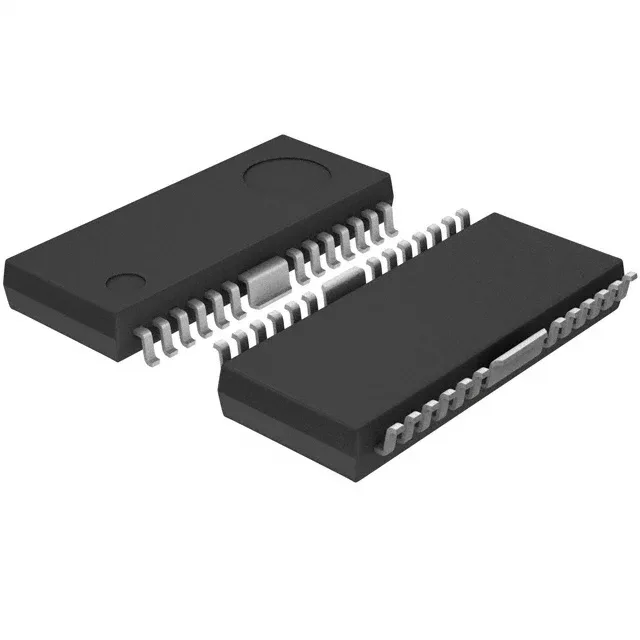

BD6395FP-E2
ROHM Semiconductor
IC MTR DRV BIPOLAR 16-28V 25HSOP
[IN STOCK] In Stock: 2 pcs
MOQ 1 · Tape & Reel (TR); Cut Tape (CT) · RoHS · EIA-481 · DAP/DDP · T/T
Technical specifications
| Parameter / Attribute | Specification / Value |
|---|---|
| Mounting | Surface Mount |
| Motor type - stepper | Bipolar |
| Voltage - load | 16V ~ 28V |
| Supply voltage | 16V ~ 28V |
| Output current | 1.2A |
| Interface | Parallel |
| Operating temperature | -25°C ~ 150°C (TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Technology | DMOS |
| Applications | General Purpose |
| Case | 25-SOP (0.213\", 5.40mm Width) + 2 Heat Tabs |
| Step resolution | 1, 1/2, 1/4 |
| Output configuration | Half Bridge (4) |
