BD63800MUF-CE2
ROHM Semiconductor
40V MAX, LOW-CONSUMPTION BIPOLAR
[IN STOCK] In Stock: 1,097 pcs
MOQ 1 · Tape & Reel (TR); Cut Tape (CT) · RoHS · EIA-481 · DAP/DDP · T/T
Technical specifications
| Parameter / Attribute | Specification / Value |
|---|---|
| Mounting | Surface Mount, Wettable Flank |
| Motor type - AC, DC | Brushed DC |
| Motor type - stepper | Bipolar |
| Voltage - load | 7V (Max) |
| Supply voltage | 6V ~ 28V |
| Output current | 1.21A |
| Interface | SPI |
| Operating temperature | -40°C ~ 125°C (TA) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Technology | DMOS |
| Applications | Automotive |

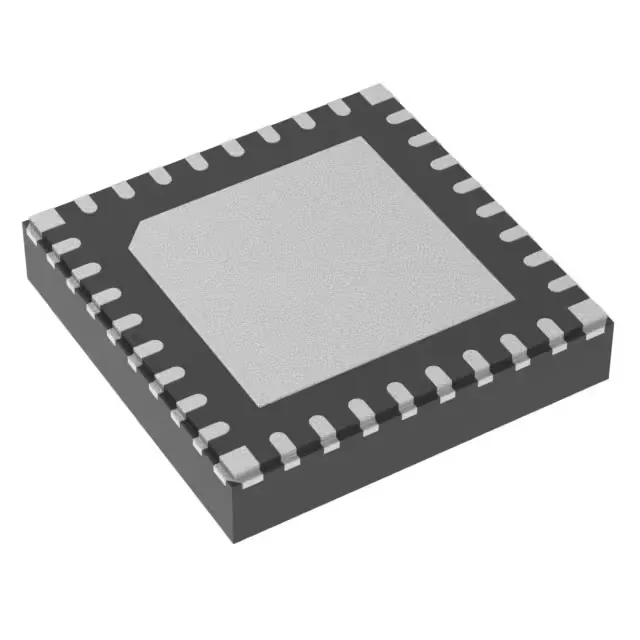

| Case | 32-VFQFN Exposed Pad |
| Step resolution | 1, 1/2, 1/4, 1/8, 1/16 |
| Output configuration | Pre-Driver - Half Bridge (4) |
