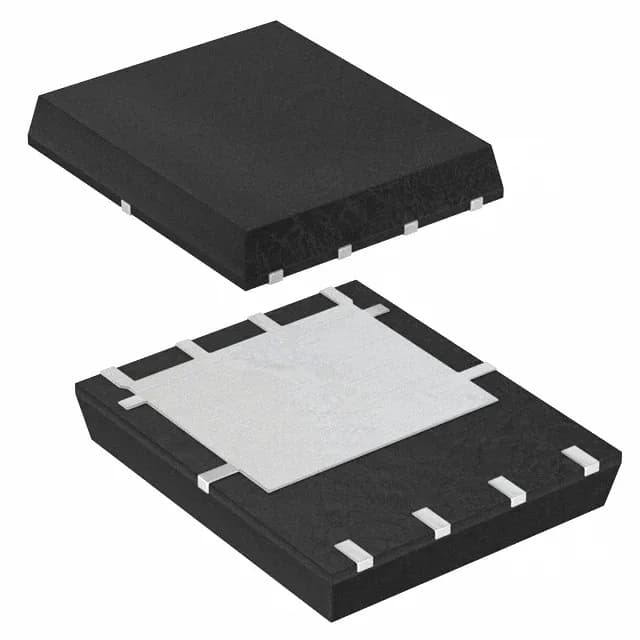

MOSFET N-CH 40V 30A 8HSOP
$2.0200Ref. price · indicative, final on quote
Packaging8-PowerTDFN
StockContact for availability
MOQ1 pcs
- 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
- Date & lot codes on quoteStated per line before you commit; label photos on request.
- MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| FET type | N-Channel |
| Mounting type | Surface Mount |
| Drain to source voltage | 40 V |
| Drive voltage (Max rds on, min rds on) | 4.5V, 10V |
| Current - continuous drain (Id) @ 25°C | 30A (Ta) |
| Power dissipation | 3W (Ta), 35W (Tc) |
| Operating temperature | 150°C (TJ) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Vgs | ±20V |
| Technology | MOSFET (Metal Oxide) |
| Case | 8-PowerTDFN |
| Vgs(th) (Max) @ id | 2.5V @ 1mA |
| Rds on (Max) @ id, vgs | 2.5mOhm @ 30A, 10V |
| Gate charge (Qg) (Max) @ vgs | 56.8 nC @ 10 V |
| Input capacitance (Ciss) (Max) @ vds | 4230 pF @ 20 V |
