Gate charge and switching speed
Total gate charge is 49 nC at 10 V, with an input capacitance of 7650 pF at 10 V drain-source. A 1 A gate driver can charge the gate in roughly 49 ns, supporting switching frequencies well above 100 kHz without the drive circuit dominating the loss budget.
Thermal and package reality

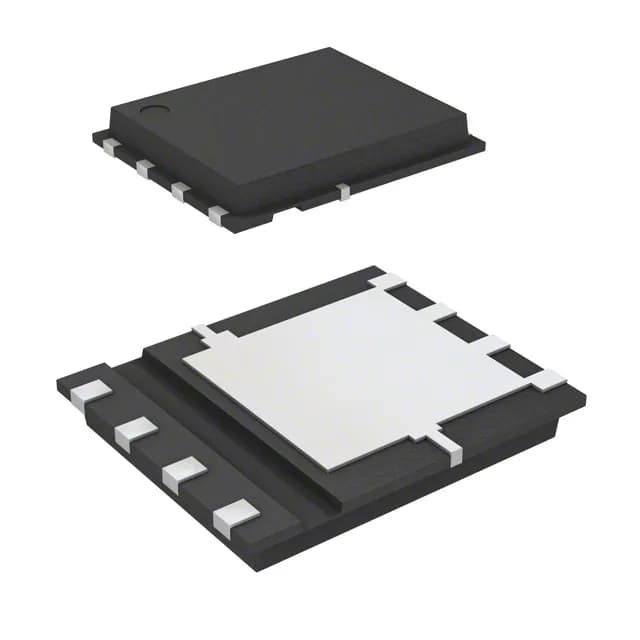

The 8-PowerWDFN package (supplier device package 8-WPAK) is a surface-mount package with an exposed pad. The 65 W maximum power dissipation at case temperature assumes the pad is soldered to a copper land with thermal vias to an inner-plane layer. Without that thermal management, the junction temperature rise at 65 A continuous will exceed the 150 °C absolute maximum junction temperature.
