ARM Cortex-M4 at 48 MHz — what it means for the control loop

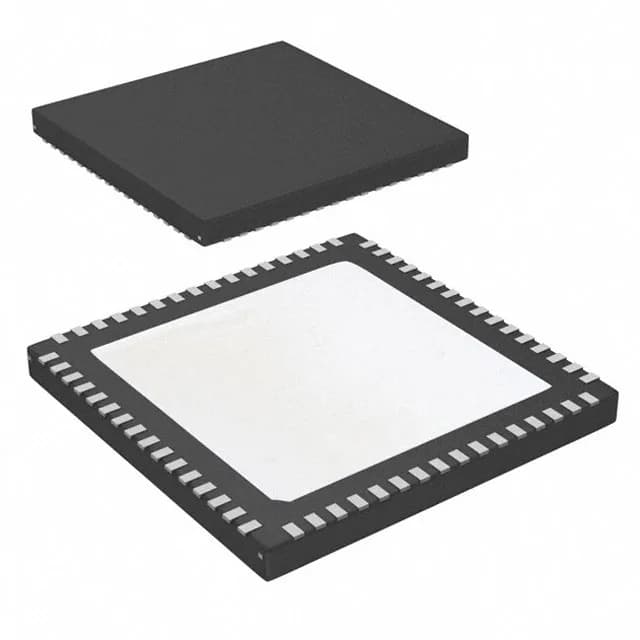

The Renesas Synergy S3 R7FS3A77C3A01CNB#AC1 is a 32-bit ARM Cortex-M4 single-core MCU clocked at 48 MHz, with 1 MB of Flash program memory, 192 KB of RAM, and 16 KB of on-chip EEPROM.
Memory and analog integration — BOM consolidation
With 1 MB Flash and 192 KB RAM, this MCU holds a substantial firmware image and data buffer for protocol stacks or motor-control lookup tables. The 16 KB EEPROM stores calibration constants and configuration parameters without an external serial EEPROM. The 18-channel 14-bit ADC captures multiple analog inputs — current-sense resistors, thermistors, potentiometers — on a single chip, while the dual 12-bit DAC generates analog setpoints or reference voltages. This integration reduces external component count and board area.
Industrial temperature grade and package
Rated for -40°C to 105°C ambient, the device is specified for environments where the PCB sees elevated temperatures.
Lifecycle and sourcing posture
The R7FS3A77C3A01CNB#AC1 carries an Active product status with ROHS3 compliance. No end-of-life notification or last-time-buy window is in effect. For dual-sourcing resilience, the Renesas RA2E1 series (R7FA2E1A52DFL#AA0) offers a 48 MHz Cortex-M23 alternative with similar connectivity but a smaller I/O count and narrower temperature range, while the RA2L1 (R7FA2L1A92DFM#AA0) adds CANbus and a 12-bit DAC. Neither is a drop-in replacement — verify pin compatibility and peripheral differences before substituting.
