Renesas Electronics R7FA2E1A53CNH#AA0 — DC-DC Power Modules
Renesas Electronics

R7FA2E1A53CNH#AA0 RA2E1 ARM Cortex-M23 MCU, 48 MHz

MPNR7FA2E1A53CNH#AA0
End of Life

Renesas RA2E1 series, ARM® Cortex®-M23 32-Bit Single-Core MCU, 48 MHz, 32 KB Flash, 16K x 8 RAM, 4K x 8 EEPROM, 23 I/O, I²C/SmartCard/SPI/UART/USART, 10x12b SAR ADC, AES/TRNG/Capacitive Touch, 1.6V–5.5V, -40°C to 105°C, 32-WFQFN Exposed Pad, Tray.

$2.38Ref. price · indicative, final on quote
R7FA2E1A53CNH#AA0 datasheet
Packaging32-WFQFN Exposed Pad
StockContact for availability
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

R7FA2E1A53CNH#AA0 Technical Specifications
ParameterValue
SeriesRA2E1
Mounting typeSurface Mount
Oscillator typeExternal, Internal
Program memory typeFLASH
Voltage - supply (Vcc (Vdd))1.6V ~ 5.5V
Operating temperature-40°C ~ 105°C (TA)
Speed48MHz
PackageTray
RAM size16K x 8
Core size32-Bit Single-Core
EEPROM size4K x 8
PeripheralsAES, Capacitive Touch, DMA, LVD, POR, PWM, Temp Sensor, TRNG, WDT
ConnectivityI²C, SmartCard, SPI, UART/USART
Number of i (O)23
Core processorARM® Cortex®-M23

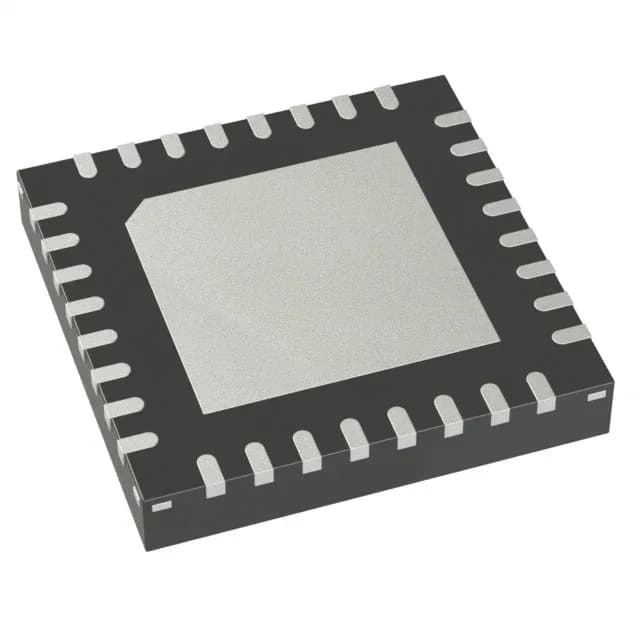

Case32-WFQFN Exposed Pad
Data convertersA/D 10x12b SAR
Program memory size32KB (32K x 8)

Product details

RA2E1 entry-level MCU for cost-sensitive control

The R7FA2E1A53CNH#AA0 is a 32-bit ARM Cortex-M23 MCU from the RA2E1 series, clocked at 48 MHz. It has 32 KB Flash, 16 KB RAM, and 4 KB EEPROM on-chip.

Industrial temperature and peripheral set

Rated for -40°C to 105°C, this MCU is at home in motor drives, outdoor telecom gear, and factory automation panels where the ambient can climb. The 10-channel 12-bit SAR ADC handles analog inputs from thermistors, pressure transducers, or current shunts without an external converter. On the security side, the hardware AES accelerator and true random number generator (TRNG) save code space for encrypted communication — a plus for IoT edge nodes that need to authenticate firmware updates.

Sourcing and lifecycle

Renesas lists this part as Active, and it is ROHS3 compliant. For dual-sourcing or a drop-in alternate, the R7FA2E1A52DNH#AA0 shares the same core, memory, and peripherals but is rated to 85°C instead of 105°C — check your ambient before swapping.

Frequently asked questions

Is R7FA2E1A53CNH#AA0 RoHS compliant?

Yes, it is ROHS3 compliant.

What is the closest functional second-source for R7FA2E1A53CNH#AA0?

The R7FA2E1A52DNH#AA0 is a near-identical sibling with the same 48 MHz Cortex-M23 core, 32 KB Flash, 16 KB RAM, and peripheral set, but its temperature range tops out at 85°C instead of 105°C. Verify your thermal requirements before substituting.
