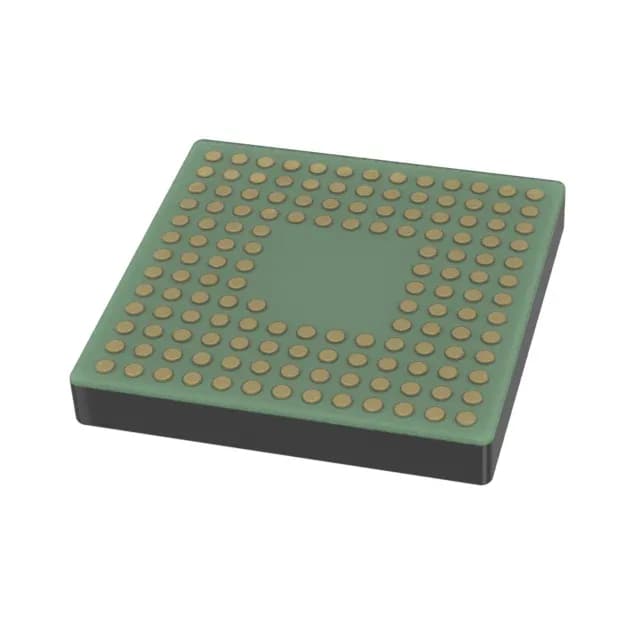

Renesas R5F572NNDGLK#20 RXv3 MCU, 240 MHz, 4 MB Flash

MPNR5F572NNDGLK#20
End of Life

Renesas RX series, R5F572NNDGLK#20, 32-bit RXv3 MCU, 240 MHz, 4 MB Flash, 1 MB SRAM, 32 KB EEPROM, 111 I/O, CAN, Ethernet, USB OTG, -40 to 105°C, 145-TFLGA.

$16.73Ref. price · indicative, final on quote
Packaging145-TFLGA
StockContact for availability
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

R5F572NNDGLK#20 Technical Specifications
ParameterValue
SeriesRX
Mounting typeSurface Mount
Oscillator typeInternal
Program memory typeFLASH
Voltage - supply (Vcc (Vdd))2.7V ~ 3.6V
Operating temperature-40°C ~ 105°C (TA)
Speed240MHz
PackageTray
RAM size1M x 8
Core size32-Bit
EEPROM size32K x 8
PeripheralsDMA, LCD, LVD, POR, PWM, WDT
ConnectivityCANbus, EBI/EMI, Ethernet, I²C, MMC/SD, QSPI, SCI, SPI, SSI, USB OTG
Number of i (O)111
Core processorRXv3
Case145-TFLGA
Data convertersA/D 29x12b; D/A 2x12b
Program memory size4MB (4M x 8)

Product details

240 MHz RXv3 core with 4 MB Flash — memory headroom for complex firmware

The Renesas R5F572NNDGLK#20 is a 32-bit RXv3 microcontroller from the RX family, built for real-time control and connectivity-intensive applications. Its 240 MHz core, 4 MB of Flash program memory, 1 MB of SRAM, and 32 KB of on-chip EEPROM give it the headroom to run a full protocol stack, a graphical HMI, and a control loop without external memory. The part integrates CAN, Ethernet, USB OTG, QSPI, MMC/SD, and multiple serial interfaces, making it a single-chip candidate for industrial gateways, motor drives, and building automation controllers.

Industrial temperature grade and 111 I/O in a 7x7 mm LGA

The 145-TFLGA package (7x7 mm) packs 111 general-purpose I/O, 29 analog inputs (12-bit), and two 12-bit DACs into a footprint that saves board area versus a larger QFP. The LGA land pattern requires a solder-paste stencil and reflow profile tuned for the 0.5 mm pitch — a rework station with hot air is adequate for hand-assembly in prototype runs.

Renesas lists the R5F572NNDGLK#20 as Active (current production) with ROHS3 compliance.

Frequently asked questions

What is the difference between the R5F572NNDGLK#20 and the R5F566TAAGFP#30?

The R5F572NNDGLK#20 runs at 240 MHz with 4 MB Flash and 1 MB SRAM, while the R5F566TAAGFP#30 runs at 160 MHz with smaller memory. The R5F572NNDGLK#20 also adds Ethernet, USB OTG, and MMC/SD connectivity not present on the R5F566TAAGFP#30. The package and I/O count differ as well — the R5F572NNDGLK#20 is a 145-TFLGA with 111 I/O versus the R5F566TAAGFP#30 in a 100-pin LQFP with 72 I/O.
