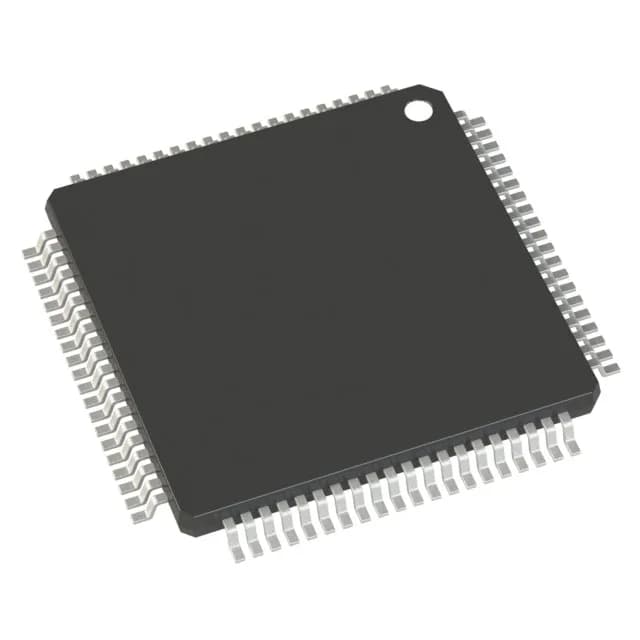

Renesas RX600 series 32-Bit RXv3 MCU, R5F56609BGFN#30, 120 MHz core, 1 MB Flash, 128K x 8 RAM, 32K x 8 EEPROM, 71 I/O, 80-LQFP, -40°C to 105°C.
| Parameter | Value |
|---|---|
| Series | RX600 |
| Mounting type | Surface Mount |
| Oscillator type | External, Internal |
| Program memory type | FLASH |
| Voltage - supply (Vcc (Vdd)) | 2.7V ~ 5.5V |
| Operating temperature | -40°C ~ 105°C (TA) |
| Speed | 120MHz |
| Package | Tray |
| RAM size | 128K x 8 |
| Core size | 32-Bit |
| EEPROM size | 32K x 8 |
| Peripherals | DMA, LVD, POR, PWM, WDT |
| Connectivity | CANbus, EBI/EMI, I²C, LINbus, SCI, SPI |
| Number of i (O) | 71 |
| Core processor | RXv3 |
| Case | 80-LQFP |
| Data converters | A/D 17x12b; D/A 2x12b |
| Program memory size | 1MB (1M x 8) |
With 71 general-purpose I/O lines, this MCU can handle a dense sensor interface or parallel bus to an external memory or FPGA. The on-chip data converters include 17 channels of 12-bit ADC and 2 channels of 12-bit DAC, enough for current-sense feedback and analog output in a servo drive or PLC analog module.
It is ROHS3 compliant.
The R5F56609BGFP#30 is a higher-I/O variant in a 100-pin LFQFP package with 88 I/O and 24 ADC channels, versus the 80-pin LQFP with 71 I/O and 17 ADC channels on the BGFN#30. Core, memory, and peripheral set are otherwise identical.
Yes, it is ROHS3 compliant.
