RX651 at 120 MHz — what this MCU brings to the BOM
The Renesas R5F5651CDDBG#20 is a 32-bit single-core microcontroller from the RX651 series, built around the RXv2 core running at 120 MHz. It carries 1.5 MB of Flash program memory and 640 KB of RAM, plus 32 KB of on-chip EEPROM — enough headroom for a moderate firmware stack with a real-time OS, Ethernet protocol buffers, and a data-logging circular buffer. The peripheral set includes DMA, LVD, POR, PWM, and WDT, and the connectivity list covers CANbus, Ethernet, I²C, LINbus, SPI, UART/USART, USB, and a QSPI interface for external memory expansion. This is a part aimed at industrial control nodes, building-automation gateways, and networked motor drives where you need one MCU to handle the fieldbus, the HMI serial link, and the control loop without a second processor.
Package and assembly — not a field-swap part

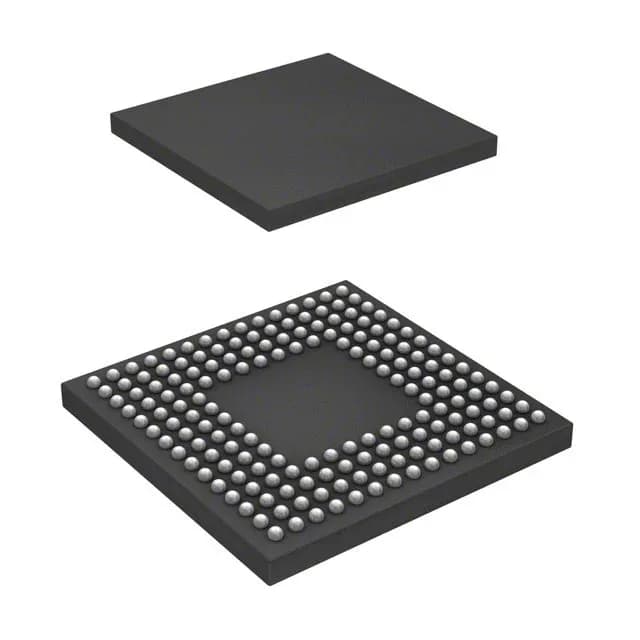

The part comes in a 176-ball LFBGA package, body size 13x13 mm. That is a fine-pitch BGA — you need a reflow oven, stencil, and X-ray inspection to mount it. No lab, no bench, no socket; this is a production-assembly part, not something you swap on site with a soldering iron. For a field-service kit, you would carry the programmed board-level spare, not the bare BGA.
Lifecycle and sourcing
The R5F5651CDDBG#20 is listed as Active and ROHS3 compliant. No end-of-life notice, no last-time-buy clock ticking. For a new design this is a safe choice — the RX651 series is current-production and Renesas continues to support it.
