What the 32 MHz core and 128 KB Flash mean for the BOM
The Renesas R5F51115ADNE#2A is a 32-bit RX111 MCU clocked at 32 MHz, with 128 KB of Flash program memory and 16 KB of RAM. That memory split is sized for a single control-loop firmware image with room for a modest bootloader and a data-logging buffer — think sensor fusion in an industrial transmitter or a brushless-DC motor controller that needs to store calibration tables. The integrated 8 KB EEPROM eliminates a separate serial EEPROM from the BOM, saving board area and a supply line. The 32 MHz clock is enough to run a PID loop at several kilohertz or handle USB full-speed packet processing without a dedicated USB controller. The peripheral set — DMA, LVD, POR, PWM, WDT — covers the usual housekeeping for an industrial design: brown-out detection, watchdog, and PWM outputs for motor or LED drive. Connectivity includes I²C, SCI (UART), SPI, and USB, so this part can serve as a system controller talking to sensors over I²C and reporting results over USB or UART.
Package and thermal: 48-HWQFN with exposed pad

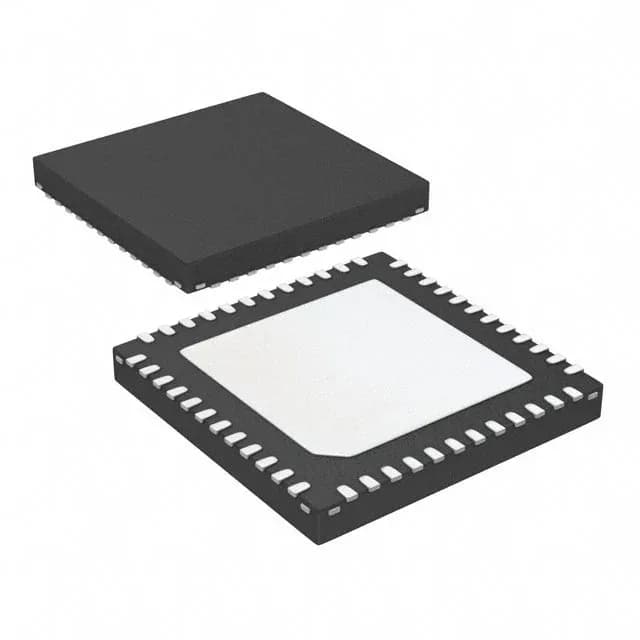

The R5F51115ADNE#2A comes in a 48-WFQFN with an exposed pad (supplier device package 48-HWQFN, 7x7 mm). The exposed pad is the primary thermal path — without a via stitch under the pad, junction temperature rises quickly above 400 mA continuous I/O load. The pad also serves as the ground return for the core; a solid via array to the ground plane keeps both thermal and electrical impedance low. This is a surface-mount part, so standard reflow profiles for QFN packages apply, and the moisture sensitivity level (MSL) should be verified before reflow if the sealed bag has been open past the floor-life window.
Temperature grade and environment
Rated for -40°C to 85°C ambient, this is the industrial temperature grade. It fits factory-floor automation, outdoor telecom cabinets, and engine-bay-adjacent electronics that see moderate heat but not the full 125°C automotive under-hood range. The 1.8 V to 3.6 V supply range lets it run from a single Li-ion cell or a 3.3 V rail, and the internal oscillator eliminates an external crystal for applications that can tolerate ±2% accuracy over temperature.
Lifecycle and sourcing posture
The R5F51115ADNE#2A is listed as Active with ROHS3 compliance. There is no NRND or last-time-buy notice on this variant, so it remains a safe choice for new designs and production builds.
