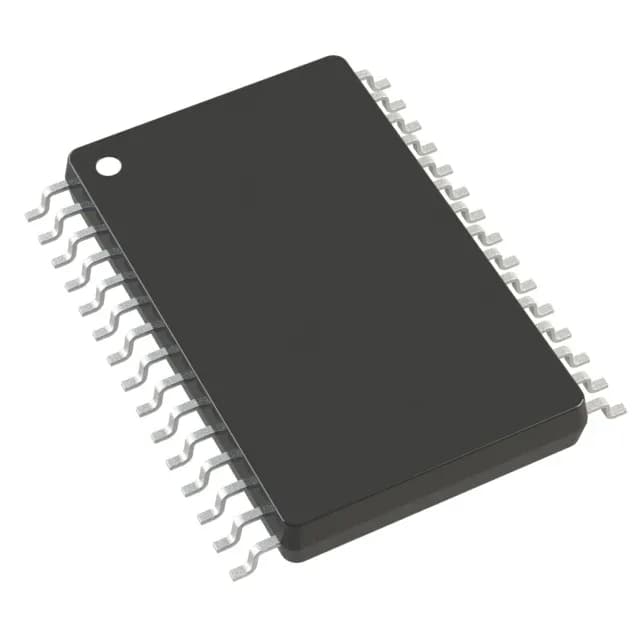

Renesas RL78/G14 16-bit MCU, R5F104ADASP#10, 32 MHz, 48 KB Flash, 5.5K x 8 RAM, 30-LSSOP, -40°C to 85°C, ROHS3.
| Parameter | Value |
|---|---|
| Series | RL78/G14 |
| Mounting type | Surface Mount |
| Oscillator type | Internal |
| Program memory type | FLASH |
| Voltage - supply (Vcc (Vdd)) | 1.6V ~ 5.5V |
| Operating temperature | -40°C ~ 85°C (TA) |
| Speed | 32MHz |
| Package | Tray |
| RAM size | 5.5K x 8 |
| Core size | 16-Bit |
| EEPROM size | 4K x 8 |
| Peripherals | DMA, LVD, POR, PWM, WDT |
| Connectivity | CSI, I2C, LINbus, UART/USART |
| Number of i (O) | 21 |
| Core processor | RL78 |
| Case | 30-LSSOP (0.240\", 6.10mm Width) |
| Data converters | A/D 8x8/10b |
| Program memory size | 48KB (48K x 8) |
Supply voltage spans 1.6 V to 5.5 V. The -40°C to 85°C range covers most factory-floor and outdoor telecom enclosures.
Renesas lists this part as Active with ROHS3 compliance. No last-time-buy or obsolescence notice is in effect, so it is safe to qualify into a new BOM or replenish an existing production line. The RL78/G14 series is a current-generation 16-bit family with broad Renesas toolchain support (e2 studio, IAR, GCC).
The R5F104ADASP#10 has 48 KB of Flash program memory (48K x 8).
Yes, the R5F104ADASP#10 is ROHS3 compliant per Renesas documentation.
The closest functional peer is the RL78/G13 series part R5F101GGAFB#30, which shares the same 32 MHz RL78 core, similar peripheral set, and a 1.6 V supply floor, but comes in a 48-pin LQFP with 34 I/O — a larger footprint. For a pin-compatible RL78/G14 with more I/O or a wider temperature range, consider the R5F104BEGFP#10 (25 I/O, -40°C to 105°C) in a different package.
Pricing and stock are confirmed at quote time. Submit an RFQ through this listing with your target quantity and ship-to location; you will receive a current price and lead-time estimate.
