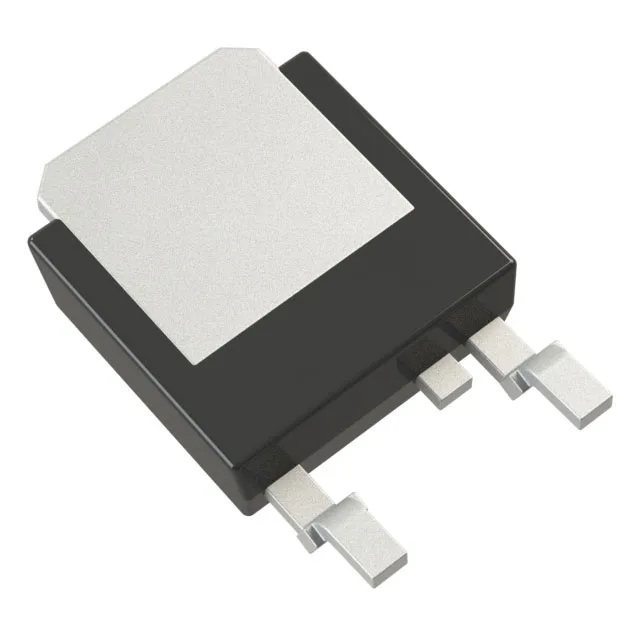

NP90N06VDK-E1-AY Renesas N-Channel MOSFET, 90 A, 60 V

MPNNP90N06VDK-E1-AY
End of Life

Renesas NP90N06VDK--AY, Automotive AEC-Q101 N-Channel MOSFET, 90 A @ 25°C, 60 V Vdss, 5.3 mOhm Rds(on) @ 45 A, 10 V, TO-252-3 (DPak) package, Surface Mount.

$2.02Ref. price · indicative, final on quote
NP90N06VDK-E1-AY datasheet
PackagingTO-252-3, DPak (2 Leads + Tab), SC-63
StockContact for availability
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

NP90N06VDK-E1-AY Technical Specifications
ParameterValue
SeriesAutomotive, AEC-Q101
FET typeN-Channel
Mounting typeSurface Mount
Drain to source voltage60 V
Drive voltage (Max rds on, min rds on)4.5V, 10V
Current - continuous drain (Id) @ 25°C90A (Tc)
Power dissipation1.2W (Ta), 147W (Tc)
Operating temperature175°C
PackageTape & Reel (TR); Cut Tape (CT)
Vgs±20V
TechnologyMOSFET (Metal Oxide)
CaseTO-252-3, DPak (2 Leads + Tab), SC-63
Vgs(th) (Max) @ id2.5V @ 250µA
Rds on (Max) @ id, vgs5.3mOhm @ 45A, 10V
Gate charge (Qg) (Max) @ vgs95 nC @ 10 V
Input capacitance (Ciss) (Max) @ vds6000 pF @ 25 V

Product details

90 A, 60 V N-Channel — what it handles

The NP90N06VDK-E1-AY: That current rating puts it in the high-current tier for a TO-252 package — the tab carries the bulk of the thermal path, so the 147 W maximum dissipation at the case is the real limit.

Gate drive and switching budget

Gate charge totals 95 nC at 10 V, with a 6000 pF input capacitance at 25 V drain. The threshold voltage is 2.5 V max at 250 µA.

AEC-Q101 and the 175°C junction limit

This part is qualified to AEC-Q101. The maximum operating junction temperature is 175°C.

Package and rework — TO-252 reality

The NP90N06VDK--AY comes in a TO-252-3 (DPak) surface-mount package with two leads plus the tab.

Frequently asked questions

What is the closest functional equivalent to NP90N06VDK--AY?

The NP179N055TUK--AY is a higher-current sibling in the same automotive AEC-Q101 family: 180 A continuous, 55 V Vdss, 1.75 mOhm Rds(on) at 90 A, 10 V. It is not a pin-for-pin drop-in — the package and gate charge differ — but it covers a similar application space for designs that need more headroom on current.
