Renesas AT45DB041E-MHN-T 4Mbit SPI Flash, 85 MHz, 8-UDFN

MPNAT45DB041E-MHN-T
End of Life

Renesas Electronics AT45DB041E-MHN-T, DataFlash serial flash, 4Mbit, SPI interface, 85 MHz clock, 8-UDFN Exposed Pad (5x6 mm), Tape & Reel.

$1.59Ref. price · indicative, final on quote
AT45DB041E-MHN-T datasheet
Packaging8-UDFN Exposed Pad
StockContact for availability
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

AT45DB041E-MHN-T Technical Specifications
ParameterValue
Memory typeNon-Volatile
Mounting typeSurface Mount
Voltage1.65V ~ 3.6V
Frequency85 MHz
Memory interfaceSPI
Operating temperature-40°C ~ 85°C (TC)
PackageTape & Reel (TR); Cut Tape (CT)
TechnologyFLASH
Memory size4Mbit
Memory formatFLASH
Case8-UDFN Exposed Pad
Memory organization264 Bytes x 2048 pages
Write cycle time - word, page8µs, 3ms

Product details

4 Mbit SPI DataFlash — wide-VCC, fast page write

The Renesas AT45DB041E-MHN-T is a 4 Mbit serial flash from the DataFlash family, organized as 264-byte pages across 2048 pages. Page writes complete in 8 µs typical, and page erase takes 3 ms — fast enough for code-shadowing or data-logging buffers where the host can poll the status register rather than insert a blocking delay.

Package and board-fit — 8-UDFN with thermal pad

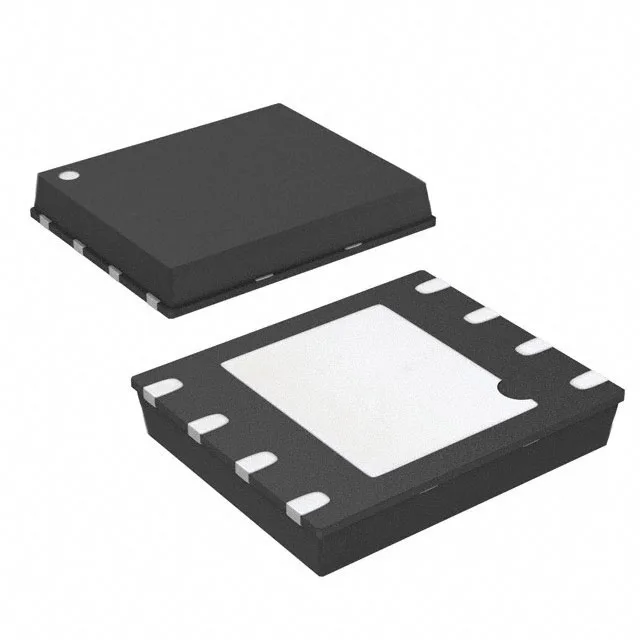

Housed in an 8-lead UDFN with an exposed pad (5x6 mm body), the part is surface-mount and RoHS3-compliant. The exposed pad provides a low thermal-resistance path to the PCB copper — useful if the part is cycled through many write/erase operations in an enclosure without forced airflow.

Frequently asked questions

What is the closest functional alternative to AT45DB041E-MHN-T?

The AT45DB041E-SHNHT-T is the closest peer — same 4 Mbit density, same SPI interface at 85 MHz, same page organization and write timing. The -SHNHT-T comes in an 8-SOIC package rather than the 8-UDFN, so the PCB footprint changes.
