Renesas 853S111BKILF, Fanout Buffer (Distribution), Multiplexer, 2:10, 2.5 GHz max, LVDS/LVPECL/SSTL input, ECL/PECL output, 2.375V to 3.8V supply, -40°C to 85°C, 32-VFQFN Exposed Pad, Surface Mount, Tray.
| Parameter | Value |
|---|---|
| Type | Fanout Buffer (Distribution), Multiplexer |
| Mounting | Surface Mount |
| Voltage | 2.375V ~ 3.8V |
| Frequency | 2.5 GHz |
| Operating temperature | -40°C ~ 85°C |
| Input | LVDS, LVPECL, SSTL |
| Output | ECL, PECL |
| Package | Tray |
| Case | 32-VFQFN Exposed Pad |
| Number of circuits | 1 |
| Ratio - Input:Output | 2:10 |
| Differential - Input:Output | Yes/Yes |
The Renesas 853S111BKILF is a 2:10 differential fanout buffer and multiplexer that takes one of two clock inputs — LVDS, LVPECL, or SSTL — and distributes it to ten ECL/PECL outputs at up to 2.5 GHz. The supply range is 2.375 V to 3.8 V.
No. The lifecycle status is Active, with no end-of-life notice. ROHS3 compliant. It can be specified into new designs without near-term obsolescence risk.
It accepts LVDS, LVPECL, and SSTL differential inputs. The outputs are ECL and PECL. Both input and output paths are fully differential.
Yes, LVDS is one of the three supported input standards, alongside LVPECL and SSTL.

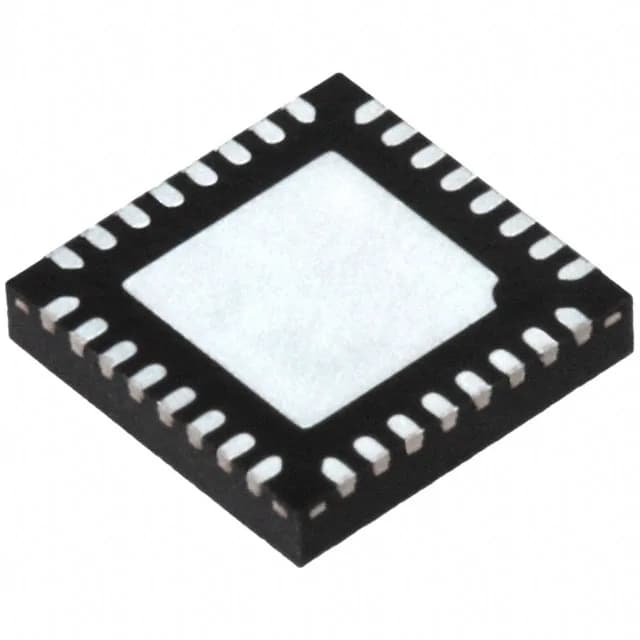

A 32-lead VFQFN with exposed pad, 5 mm x 5 mm body. Surface mount. Ships in a tray.
