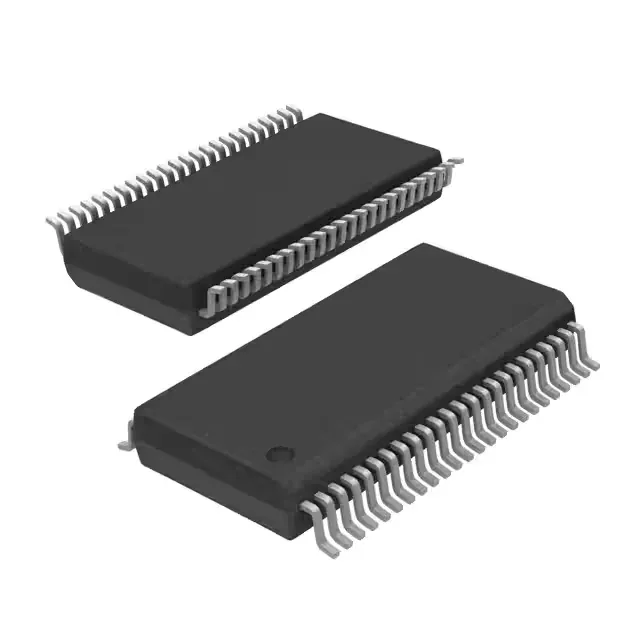

Renesas 74FCT16245ATPAG 16-bit Transceiver, 48-TSSOP

MPN74FCT16245ATPAG
End of Life

Renesas Electronics 74FCT series 16-bit transceiver, non-inverting, 3-state outputs, 48-TFSOP (6.10mm width) package, 4.5V to 5.5V supply, -40°C to 85°C operating temperature.

$1.47Ref. price · indicative, final on quote
74FCT16245ATPAG datasheet
Packaging48-TFSOP (0.240", 6.10mm Width)
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

74FCT16245ATPAG Technical Specifications
ParameterValue
Series74FCT
Logic typeTransceiver, Non-Inverting
Output type3-State
Mounting typeSurface Mount
Voltage4.5V ~ 5.5V
Current - output high, low32mA, 64mA
Operating temperature-40°C ~ 85°C (TA)
PackageTube
Case48-TFSOP (0.240\", 6.10mm Width)
Number of elements2
Number of bits per element8

Product details

Bus transceiver with 32/64 mA drive

The 74FCT16245ATPAG is a 16-bit non-inverting transceiver organized as two 8-bit elements, each with independent direction and output-enable controls. The 3-state outputs let multiple devices share a common data bus without contention. Output drive is 32 mA source and 64 mA sink per channel, enough to drive a heavily loaded backplane or a bank of LED indicators without external buffers.

Industrial temperature and package

The 48-TSSOP body (6.10 mm width) is the same footprint as the 48-TFSOP listed in the package case — both refer to the same thin-shrink SOP outline with 0.50 mm pitch.

Frequently asked questions

Where can I buy 74FCT16245ATPAG and check current pricing?

The 74FCT16245ATPAG is an active-production part from Renesas.

Is 74FCT16245ATPAG equivalent to 74FCT16245ATPG?

The 74FCT16245ATPAG and 74FCT16245ATPG share the same 16-bit transceiver function and 48-TSSOP package. The difference is in the packing method: the 'PAG' suffix indicates tube packaging, while 'PG' typically denotes tape-and-reel. Electrically and functionally they are identical.
