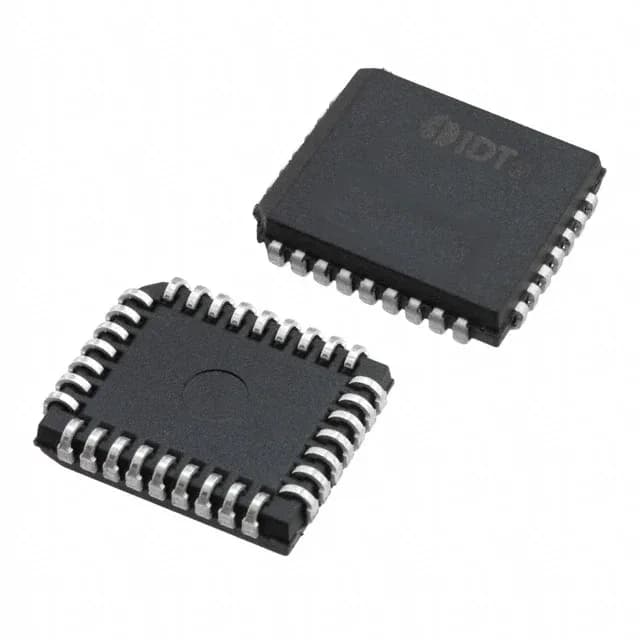

7203L12JG FIFO 2Kx9 Async 12ns 32-PLCC – Renesas 7200 Series

MPN 7203L12JG
End of Life Spot Stock · 24-48h Dispatch 100% Original Sealed

Renesas 7200 Series, 7203L12JG, Asynchronous FIFO, 18K (2K x 9), 12 ns access time, 50 MHz data rate, 4.5 V ~ 5.5 V supply, 0°C ~ 70°C, 32-PLCC.

In Stock: 352 pcs
MOQ: 1 pcs
Logistics: DHL / FedEx DAP (Global Express · 3-7d) Russia & CIS DDP (Door-to-Door Cleared)
Dispatch: Shenzhen / HK
Unit Price (USD)
$18.02 / pc
Direct Purchase Ready
Volume Pricing Breaks Confirmed upon quotation
1+ pcs
$18.02
10+ pcs
$16.22
30+ pcs
$14.78
100+ pcs
$13.33
Working on a production BOM or have a target unit price? Submit Target Price
Buy Now

$18.02 / ea

352 in stock — maximum per order · 3–4 days lead time

$16.22 / ea from 10 pcs

Upload Full BOM List
[SPEC] Essential Parameters Snapshot Full Specifications (16)
Package / Case 32-LCC (J-Lead)
Supply Voltage 4.5 V ~ 5.5 V
Memory / RAM 18K (2K x 9)

Full Technical Specifications

16 Parameters
7203L12JG specifications
Parameter / AttributeSpecification / Value
Series7200
MountingSurface Mount
Expansion typeDepth, Width
Supply voltage4.5 V ~ 5.5 V
Current - supply120mA
Operating temperature0°C ~ 70°C
PackageTube
FunctionAsynchronous
Data rate50MHz
Access time12ns
Memory size18K (2K x 9)
FWFT supportNo
Case32-LCC (J-Lead)
Bus directionalUni-Directional
Retransmit capabilityYes
Programmable flags supportNo
Series Sibling Variants

Renesas Electronics 7200 Series Models

Sibling variants, package options, and speed/density grades in this Renesas Electronics semiconductor series. Active Shenzhen warehouse allocation and rapid 24-48h dispatch.

Technical Details & Description

The Renesas 7203L12JG is an asynchronous FIFO memory from the 7200 series, organized as 2K x 9 bits (18 Kbit total).

Asynchronous operation and retransmit capability

This is a true asynchronous FIFO: separate read and write clocks (or strobes) with independent enable pins. No FWFT (First-Word Fall-Through) support means the first written word does not appear on the outputs until the first read strobe — a standard synchronous-style read cycle. The retransmit capability allows resetting the read pointer to the beginning of the FIFO without clearing the data, useful for retry-on-error protocols. Expansion is supported in both depth and width, so multiple 7203L12JG devices can be cascaded for larger buffers.

For a BOM that requires a 2K x 9 asynchronous FIFO in a 32-PLCC, this is a direct fit with no substitution risk.

Frequently asked questions

What is the closest pin-compatible alternative to 7203L12JG?

Within the 7200 series, the 7203L12JG is a specific speed grade (12 ns) and package (32-PLCC). A pin-compatible alternative would be another 7200-series FIFO with the same 32-PLCC footprint and 2K x 9 organization, but with a different access time (e.g., 15 ns or 20 ns). No exact replacement with identical speed and package is listed as an official cross-reference. For a drop-in replacement, verify the access time and supply voltage match the system timing budget.
