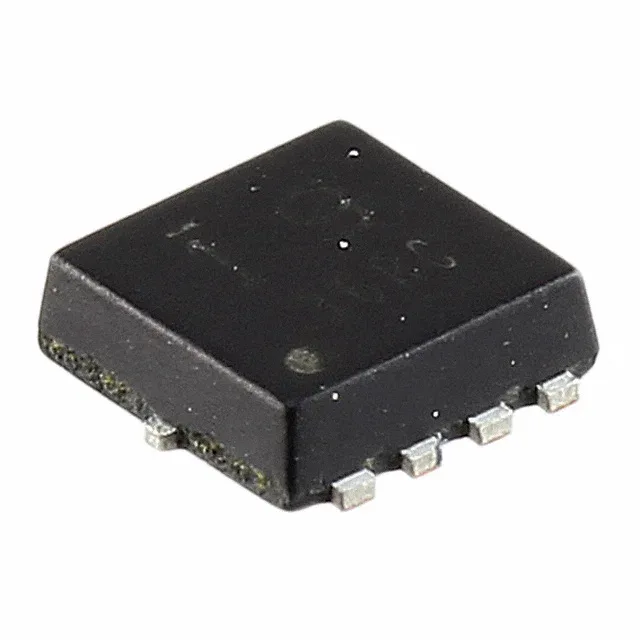

Panasonic Electronic Components SK8403160L
MPNSK8403160L
Active
MOSFET N-CH 30V 18A 8HSSO
$1.21Ref. price · indicative, final on quote
Packaging8-PowerSMD, Flat Leads
RoHSRoHS Compliant
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| FET type | N-Channel |
| Mounting | Surface Mount |
| Drain to source voltage | 30 V |
| Drive voltage (Max rds on, min rds on) | 4.5V, 10V |
| Current - continuous drain (Id) @ 25°C | 18A (Ta), 70A (Tc) |
| Power dissipation | 2W (Ta), 28W (Tc) |
| Operating temperature | 150°C (TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Vgs | ±20V |
| Technology | MOSFET (Metal Oxide) |
| Case | 8-PowerSMD, Flat Leads |
| Vgs(th) (Max) @ id | 3V @ 3.35mA |
| Rds on (Max) @ id, vgs | 3.3mOhm @ 14.5A, 10V |
| Gate charge (Qg) (Max) @ vgs | 22 nC @ 4.5 V |
| Input capacitance (Ciss) (Max) @ vds | 3920 pF @ 10 V |
