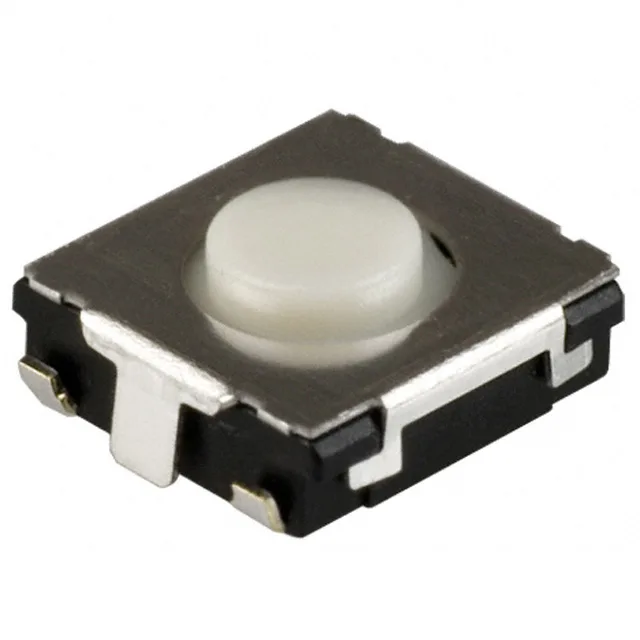

Panasonic Electronic Components EVQ-Q2W02W
MPNEVQ-Q2W02W
Active
$0.33288Price · pay online now
$0.33 / ea
1 in stock — maximum per order · 3–4 days lead time
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | EVQQ2 |
| Actuation | Standard |
| Mounting | Surface Mount |
| Contact rating @ voltage | 0.02A @ 15VDC |
| Operating temperature | -40°C ~ 85°C |
| Actuator height off PCB, vertical | 2.50mm |
| Mechanical life | 200,000 Cycles |
| Circuit | SPST-NO |
| Outline | 6.50mm x 6.00mm |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Grounding Pin |
| Illumination | Non-Illuminated |
| Switch travel | 0.25mm |
| Operating force | 260gf |
| Switch function | Off-Mom |
| Termination style | J Lead |
| Actuator orientation | Top Actuated |
