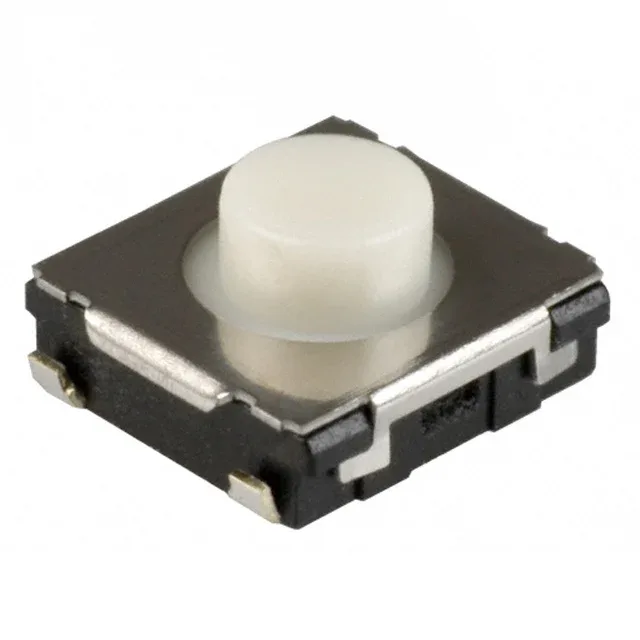

Panasonic Electronic Components EVQ-Q2D03W
MPNEVQ-Q2D03W
Active
$0.34992Price · pay online now
$0.35 / ea · total $1.75
72 in stock — maximum per order · MOQ 5 · 3–4 days lead time
$0.27 / ea from 50 pcs
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | EVQQ2 |
| Actuation | Standard |
| Mounting | Surface Mount |
| Contact rating @ voltage | 0.02A @ 15VDC |
| Operating temperature | -40°C ~ 85°C |
| Actuator height off PCB, vertical | 3.10mm |
| Mechanical life | 2,000,000 Cycles |
| Circuit | SPST-NO |
| Outline | 6.50mm x 6.00mm |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Grounding Pin |
| Illumination | Non-Illuminated |
| Switch travel | 0.20mm |
| Operating force | 50gf |
| Switch function | Off-Mom |
| Termination style | J Lead |
| Actuator orientation | Top Actuated |
