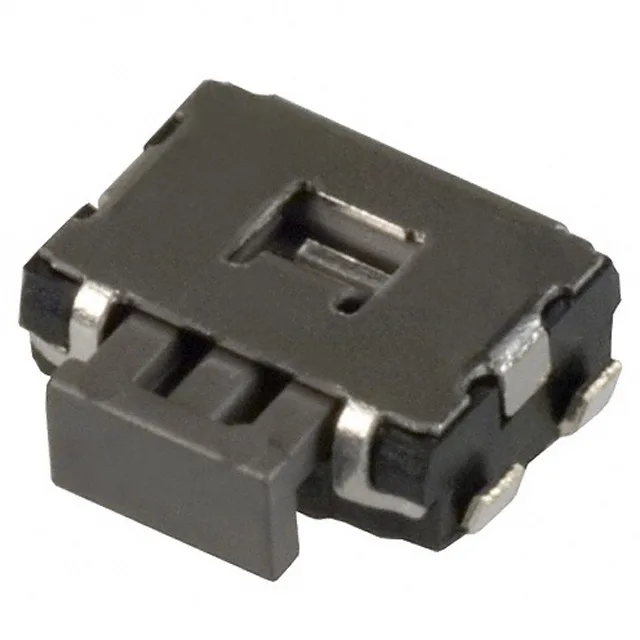

Panasonic Electronic Components EVQ-P7M01P
MPNEVQ-P7M01P
Active
$0.67824Price · pay online now
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | EVQP7 |
| Actuation | Rectangular Button |
| Mounting | Surface Mount, Right Angle |
| Contact rating @ voltage | 0.05A @ 12VDC |
| Operating temperature | -20°C ~ 70°C |
| Mechanical life | 100,000 Cycles |
| Circuit | SPST-NO |
| Outline | 4.30mm x 2.90mm |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Board Guide |
| Illumination | Non-Illuminated |
| Switch travel | 0.20mm |
| Operating force | 160gf |
| Switch function | Off-Mom |
| Termination style | J Lead |
| Actuator orientation | Side Actuated |
