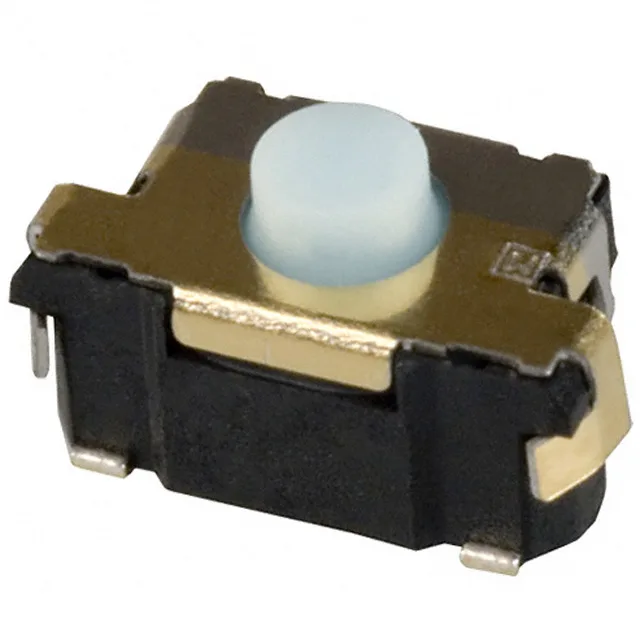

Panasonic Electronic Components EVQ-P4HB3B
MPNEVQ-P4HB3B
Active
$0.34416Price · pay online now
$0.34 / ea
965 in stock — maximum per order · 3–4 days lead time
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | EVQP4 |
| Actuation | Standard |
| Mounting | Edge Mount, Right Angle |
| Contact rating @ voltage | 0.02A @ 15VDC |
| Operating temperature | -40°C ~ 85°C |
| Mechanical life | 1,000,000 Cycles |
| Circuit | SPST-NO |
| Outline | 6.20mm x 2.55mm |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Illumination | Non-Illuminated |
| Switch travel | 0.70mm |
| Operating force | 250gf |
| Switch function | Off-Mom |
| Termination style | SMD (SMT) Tab |
| Actuator orientation | Side Actuated |
| Actuator length, right angle | 2.50mm |
