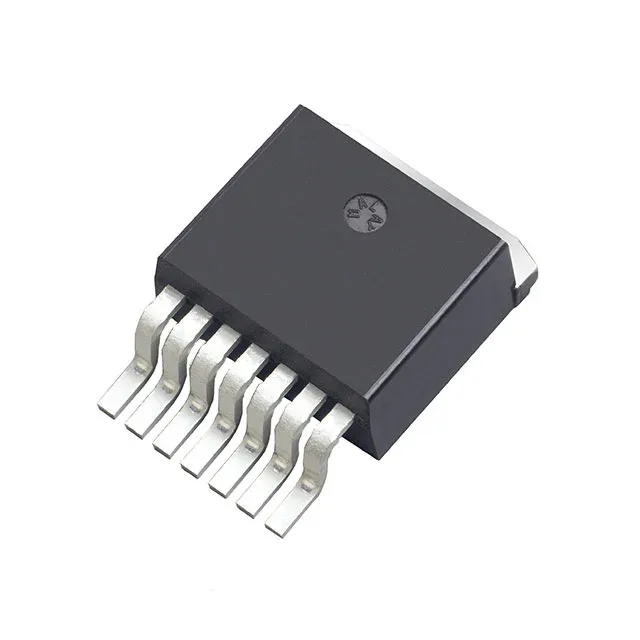

onsemi NVBG160N120SC1
MPNNVBG160N120SC1
End of Life
SICFET N-CH 1200V 19.5A D2PAK
$14.16Ref. price · indicative, final on quote
PackagingTO-263-8, D²Pak (7 Leads + Tab), TO-263CA
RoHSROHS3 Compliant
SeriesAutomotive, AEC-Q101
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Automotive, AEC-Q101 |
| FET type | N-Channel |
| Mounting | Surface Mount |
| Drain to source voltage | 1200 V |
| Drive voltage (Max rds on, min rds on) | 20V |
| Current - continuous drain (Id) @ 25°C | 19.5A (Tc) |
| Power dissipation | 136W (Tc) |
| Operating temperature | -55°C ~ 175°C (TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Vgs | +25V, -15V |
| Technology | SiCFET (Silicon Carbide) |
| Case | TO-263-8, D²Pak (7 Leads + Tab), TO-263CA |
| Vgs(th) (Max) @ id | 4.3V @ 2.5mA |
| Rds on (Max) @ id, vgs | 224mOhm @ 12A, 20V |
| Gate charge (Qg) (Max) @ vgs | 33.8 nC @ 20 V |
| Input capacitance (Ciss) (Max) @ vds | 678 pF @ 800 V |
