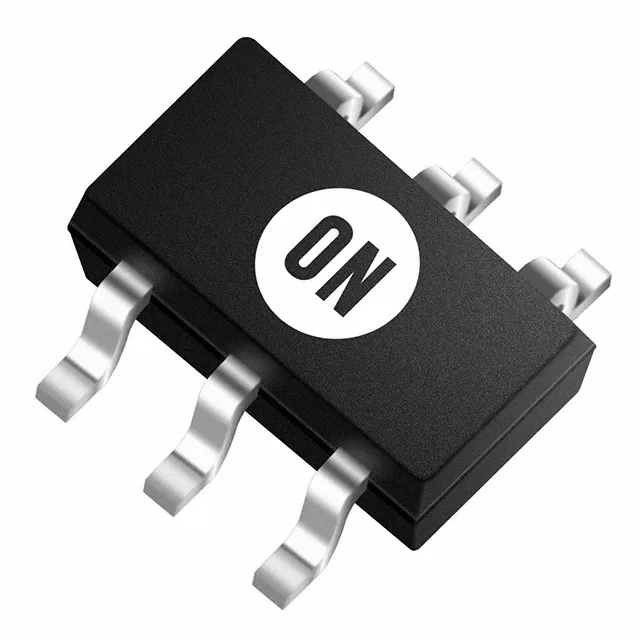

onsemi NTJD4158CT1G
MPNNTJD4158CT1G
End of Life
MOSFET N/P-CH 30V/20V SC88
$0.43Ref. price · indicative, final on quote
Packaging6-TSSOP, SC-88, SOT-363
RoHSROHS3 Compliant
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Surface Mount |
| Drain to source voltage | 30V, 20V |
| Current - continuous drain (Id) @ 25°C | 250mA, 880mA |
| Power - max | 270mW |
| Operating temperature | -55°C ~ 150°C (TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Technology | MOSFET (Metal Oxide) |
| FET feature | Logic Level Gate |
| Configuration | N and P-Channel |
| Case | 6-TSSOP, SC-88, SOT-363 |
| Vgs(th) (Max) @ id | 1.5V @ 100µA |
| Rds on (Max) @ id, vgs | 1.5Ohm @ 10mA, 4.5V |
| Gate charge (Qg) (Max) @ vgs | 1.5nC @ 5V |
| Input capacitance (Ciss) (Max) @ vds | 33pF @ 5V |
