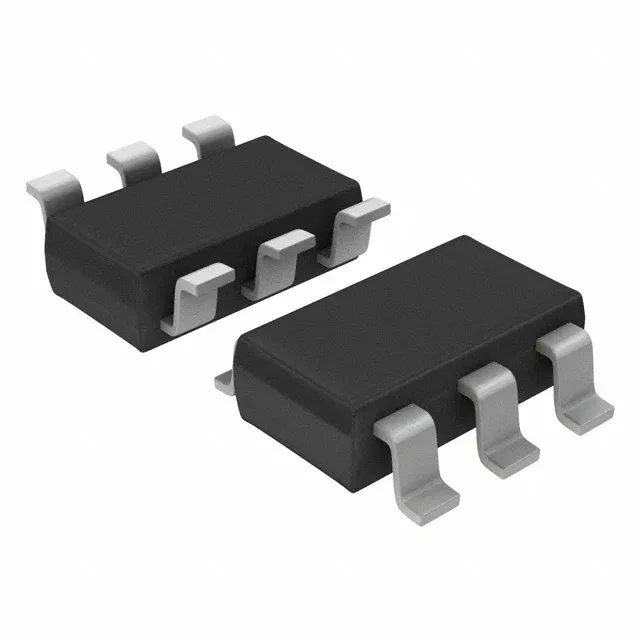

NTGS3441T1G
onsemi
MOSFET P-CH 20V 1.65A 6TSOP
[IN STOCK] In Stock: 4 pcs
MOQ 1 · Tape & Reel (TR); Cut Tape (CT) · RoHS · EIA-481 · DAP/DDP · T/T
Technical specifications
| Parameter / Attribute | Specification / Value |
|---|---|
| FET type | P-Channel |
| Mounting | Surface Mount |
| Drain to source voltage | 20 V |
| Drive voltage (Max rds on, min rds on) | 2.5V, 4.5V |
| Current - continuous drain (Id) @ 25°C | 1.65A (Ta) |
| Power dissipation | 500mW (Ta) |
| Operating temperature | -55°C ~ 150°C (TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Vgs | ±8V |
| Technology | MOSFET (Metal Oxide) |
| Case | SOT-23-6 Thin, TSOT-23-6 |
| Vgs(th) (Max) @ id | 1.5V @ 250µA |
| Rds on (Max) @ id, vgs | 90mOhm @ 3.3A, 4.5V |
| Gate charge (Qg) (Max) @ vgs | 14 nC @ 4.5 V |
| Input capacitance (Ciss) (Max) @ vds | 480 pF @ 5 V |
