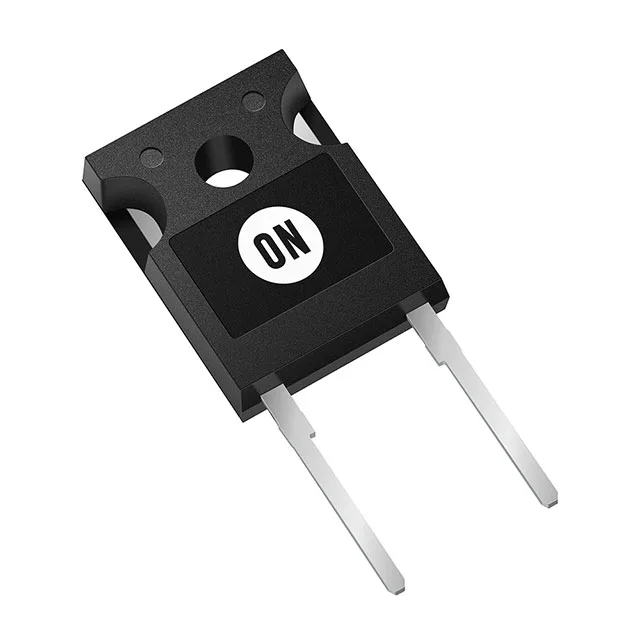

onsemi NDSH25170A
MPNNDSH25170A
End of Life
DIODE SIL CARB 1.7KV 25A TO247-2
$19.27Ref. price · indicative, final on quote
PackagingTO-247-2
RoHSROHS3 Compliant
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Diode type | Silicon Carbide Schottky |
| Mounting | Through Hole |
| Voltage - DC reverse (Vr) | 1700 V |
| Voltage - forward (Vf) (Max) @ if | 1.75 V @ 25 A |
| Current - reverse leakage @ vr | 40 µA @ 1700 V |
| Current - average rectified | 25A |
| Operating temperature - junction | -55°C ~ 175°C |
| Speed | No Recovery Time > 500mA (Io) |
| Package | Tube |
| Case | TO-247-2 |
| Capacitance @ vr, | 2025pF @ 1V, 100kHz |
| Reverse recovery time | 0 ns |
