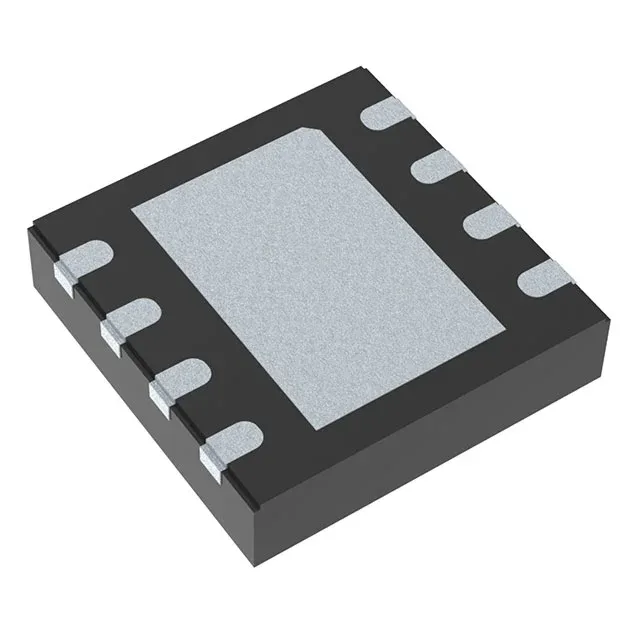

NCV8187AMLE280TCG
onsemi · Automotive, AEC-Q100 Series
1.2A LDO REGULATOR, LOW DROPOUT
[IN STOCK] In Stock: 1,493 pcs
MOQ 1 · Tape & Reel (TR); Cut Tape (CT) · RoHS · EIA-481 · DAP/DDP · T/T
Technical specifications
| Parameter / Attribute | Specification / Value |
|---|---|
| Series | Automotive, AEC-Q100 |
| Output type | Fixed |
| Mounting | Surface Mount, Wettable Flank |
| Voltage - input | 5.5V |
| Voltage dropout | 0.25V @ 1.2A |
| Voltage - output (Min (Fixed)) | 2.8V |
| Output current | 1.2A |
| Current - quiescent | 45 µA |
| Operating temperature | 150°C (TJ) |
| PSRR | 75dB (1kHz) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Case | 8-VDFN Exposed Pad |
| Control features | Enable, Power Good |
| Protection features | Over Current, Over Temperature |
| Number of regulators | 1 |
| Output configuration | Positive |
