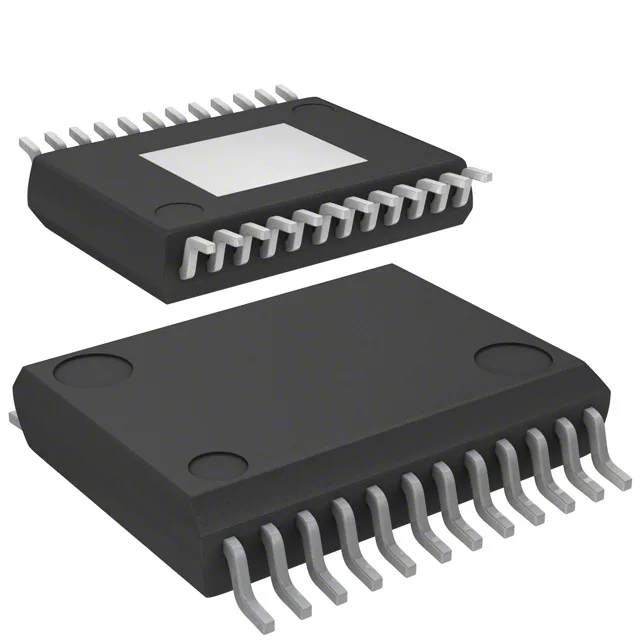

onsemi NCV7724DQBR2G
MPNNCV7724DQBR2G
End of Life
IC HALF BRIDGE DRVR 1.1A 24SSOP
$10.35684Price · pay online now
$10.36 / ea
5 in stock — maximum per order · 3–4 days lead time
Packaging24-LSSOP (0.154", 3.90mm Width) Exposed Pad
RoHSROHS3 Compliant
SeriesAutomotive, AEC-Q100
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Automotive, AEC-Q100 |
| Load type | Inductive, Capacitive |
| Mounting | Surface Mount |
| Voltage - load | 3.15V ~ 5.25V |
| Supply voltage | 3.15V ~ 5.25V |
| Current - peak output | 1.1A |
| Current - output (Channel) | 1.1A |
| Interface | Logic, PWM, SPI, Serial |
| Operating temperature | -40°C ~ 150°C (TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Charge Pump |
| Technology | NMOS |
| Applications | DC Motors, General Purpose |
| Rds on | 800mOhm LS, 800mOhm HS |
| Case | 24-LSSOP (0.154\", 3.90mm Width) Exposed Pad |
| Fault protection | Over Current, Over Temperature, UVLO |
| Output configuration | Half Bridge (8) |
