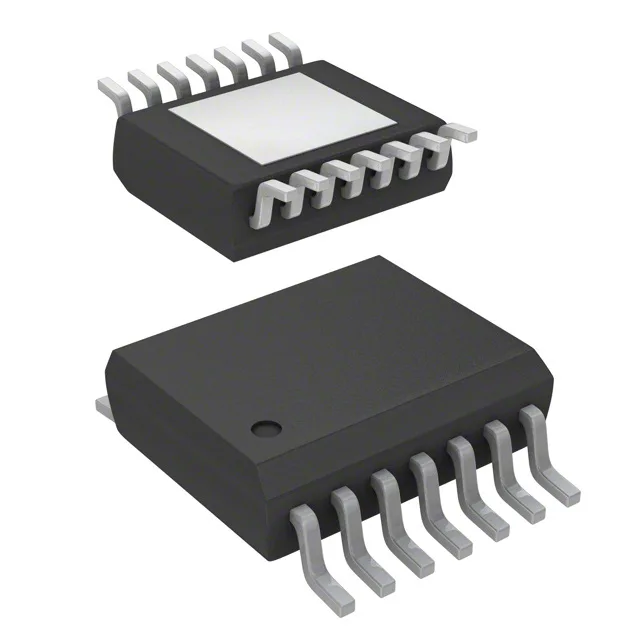

onsemi NCV47721PAAJR2G
MPNNCV47721PAAJR2G
End of Life
IC REG LIN POS ADJ 200MA 14TSSOP
$2.13048Price · pay online now
Packaging14-TSSOP (0.173", 4.40mm Width) Exposed Pad
RoHSROHS3 Compliant
SeriesAutomotive, AEC-Q100
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Automotive, AEC-Q100 |
| Output type | Adjustable |
| Mounting | Surface Mount |
| Voltage - input | 40V |
| Voltage dropout | 0.5V @ 200mA |
| Voltage - output | 20V |
| Voltage - output (Min (Fixed)) | 3.3V |
| Output current | 200mA |
| Current - supply | 15 mA |
| Current - quiescent | 1 mA |
| Operating temperature | -40°C ~ 150°C (TJ) |
| PSRR | 80dB (100Hz) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Case | 14-TSSOP (0.173\", 4.40mm Width) Exposed Pad |
| Control features | Enable, Error Flag |
| Protection features | Over Current, Over Temperature, Reverse Polarity |
| Number of regulators | 1 |
| Output configuration | Positive |
