onsemi NCV47711PDAJR2G
MPNNCV47711PDAJR2G
End of Life
IC REG LIN POS ADJ 350MA 8SOIC
$2.28Ref. price · indicative, final on quote

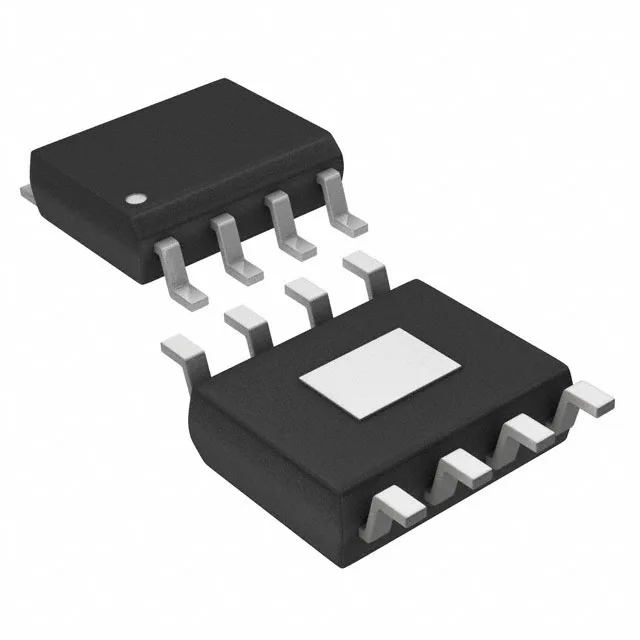

Packaging8-SOIC (0.154", 3.90mm Width) Exposed Pad
RoHSROHS3 Compliant
SeriesAutomotive, AEC-Q100
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Automotive, AEC-Q100 |
| Output type | Adjustable |
| Mounting | Surface Mount |
| Voltage - input | 40V |
| Voltage dropout | 0.5V @ 150mA |
| Voltage - output | 20V |
| Voltage - output (Min (Fixed)) | 5V |
| Output current | 350mA |
| Current - supply | 50 mA |
| Current - quiescent | 230 µA |
| Operating temperature | -40°C ~ 150°C |
| PSRR | 70dB (100Hz) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Case | 8-SOIC (0.154\", 3.90mm Width) Exposed Pad |
| Control features | Enable |
| Protection features | Over Current, Over Temperature, Reverse Polarity |
| Number of regulators | 1 |
| Output configuration | Positive |
