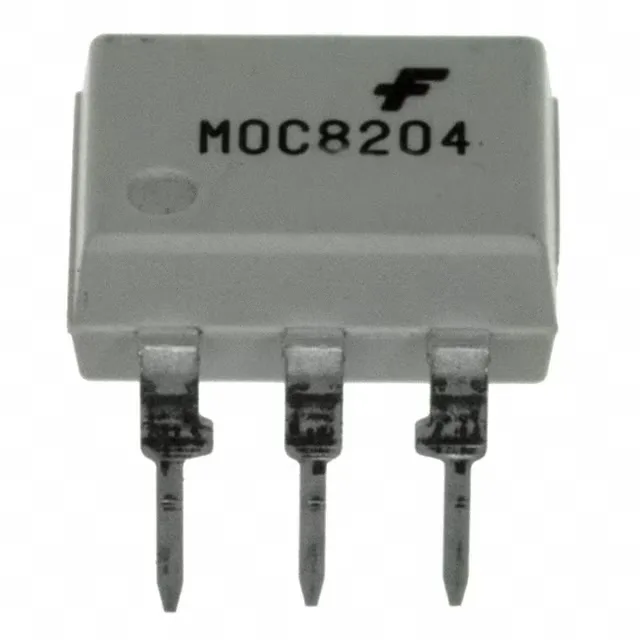

onsemi MOC8204M
MPNMOC8204M
End of Life
OPTOISO 4.17KV TRANS W/BASE 6DIP
$1.78272Price · pay online now
Packaging6-DIP (0.300", 7.62mm)
RoHSROHS3 Compliant
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Input type | DC |
| Output type | Transistor with Base |
| Mounting | Through Hole |
| Voltage - isolation | 4170Vrms |
| Voltage - output | 400V |
| Voltage - forward (Vf) | 1.15V |
| Current - output (Channel) | 100mA |
| Current transfer ratio | 20% @ 10mA |
| Current - DC forward (If) | 80 mA |
| Operating temperature | -40°C ~ 100°C |
| Package | Tube |
| Case | 6-DIP (0.300\", 7.62mm) |
| Channels | 1 |
| Vce saturation | 400mV |
| Turn on (Turn off time) | 5µs, 5µs |
