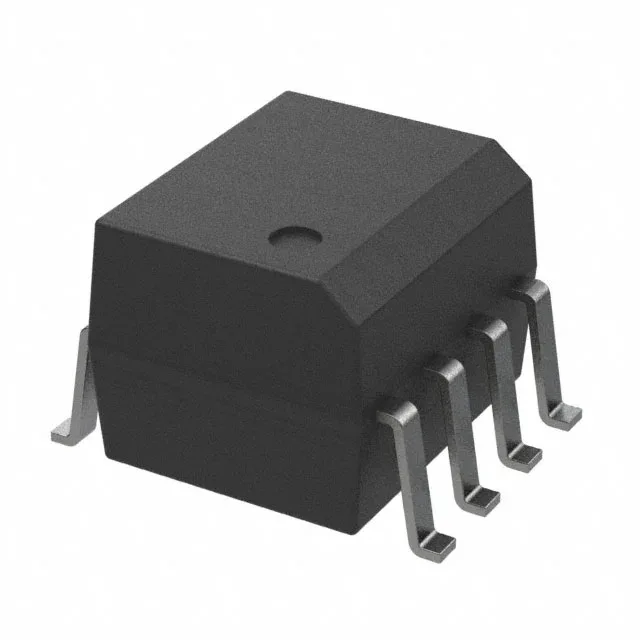

onsemi MOC216R2VM
MPNMOC216R2VM
End of Life
TRANSISTOR OUTPUT OPTOCOUPLER, 2
$0.27Ref. price · indicative, final on quote
Packaging8-SOIC (0.154", 3.90mm Width)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Input type | DC |
| Output type | Transistor with Base |
| Mounting | Surface Mount |
| Voltage - isolation | 2500Vrms |
| Voltage - output | 30V |
| Voltage - forward (Vf) | 1.07V |
| Current - output (Channel) | 150mA |
| Current transfer ratio | 50% @ 1mA |
| Current - DC forward (If) | 60 mA |
| Operating temperature | -40°C ~ 100°C |
| Package | Bulk |
| Case | 8-SOIC (0.154\", 3.90mm Width) |
| Channels | 1 |
| Vce saturation | 400mV |
| Rise (Fall time) | 3.2µs, 4.7µs |
| Turn on (Turn off time) | 7.5µs, 5.7µs |
