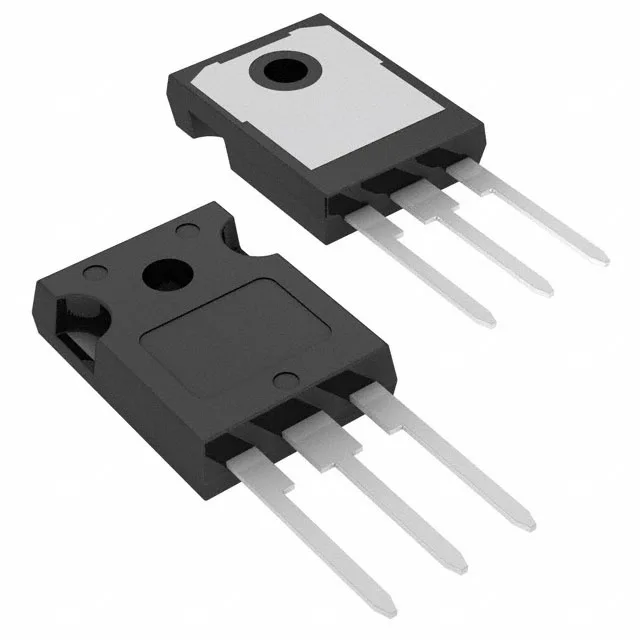

onsemi HUF75344G3
MPNHUF75344G3
End of Life
MOSFET N-CH 55V 75A TO247-3
$3.77Ref. price · indicative, final on quote
PackagingTO-247-3
RoHSROHS3 Compliant
SeriesUltraFET™
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | UltraFET™ |
| FET type | N-Channel |
| Mounting | Through Hole |
| Drain to source voltage | 55 V |
| Drive voltage (Max rds on, min rds on) | 10V |
| Current - continuous drain (Id) @ 25°C | 75A (Tc) |
| Power dissipation | 285W (Tc) |
| Operating temperature | -55°C ~ 175°C (TJ) |
| Package | Tube |
| Vgs | ±20V |
| Technology | MOSFET (Metal Oxide) |
| Case | TO-247-3 |
| Vgs(th) (Max) @ id | 4V @ 250µA |
| Rds on (Max) @ id, vgs | 8mOhm @ 75A, 10V |
| Gate charge (Qg) (Max) @ vgs | 210 nC @ 20 V |
| Input capacitance (Ciss) (Max) @ vds | 3200 pF @ 25 V |
