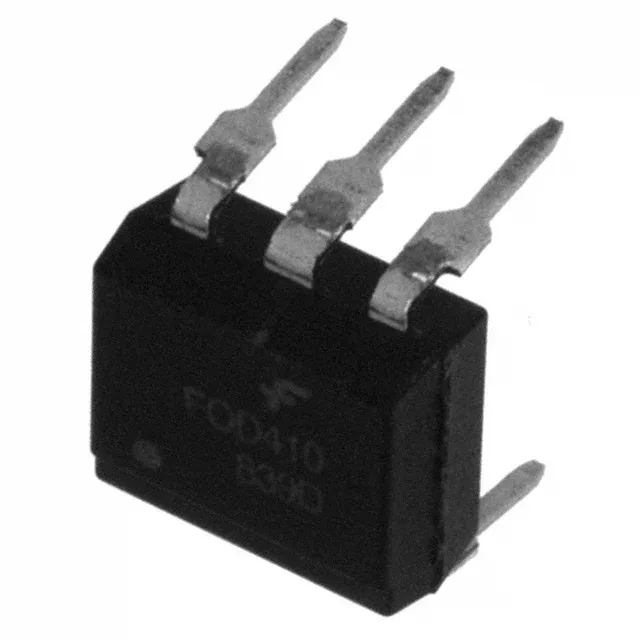

FOD410
onsemi
OPTOISOLATOR 5KV TRIAC 6DIP
[IN STOCK] In Stock: 10 pcs
MOQ 1 · Tube · RoHS · EIA-481 · DAP/DDP · T/T
Technical specifications
| Parameter / Attribute | Specification / Value |
|---|---|
| Output type | Triac |
| Mounting | Through Hole |
| Voltage - isolation | 5000Vrms |
| Voltage - off state | 600 V |
| Voltage - forward (Vf) | 1.25V |
| Current - hold | 500µA |
| Current - DC forward (If) | 30 mA |
| Current - LED trigger (Ift) | 2mA |
| Operating temperature | -55°C ~ 100°C |
| Approval agency | CSA, UL |
| Package | Tube |
| Turn on time | 60µs |
| Case | 6-DIP (0.300\", 7.62mm) |
| Channels | 1 |
| Static dV (dt) | 10kV/µs |
| Zero crossing circuit | Yes |
FOD410
