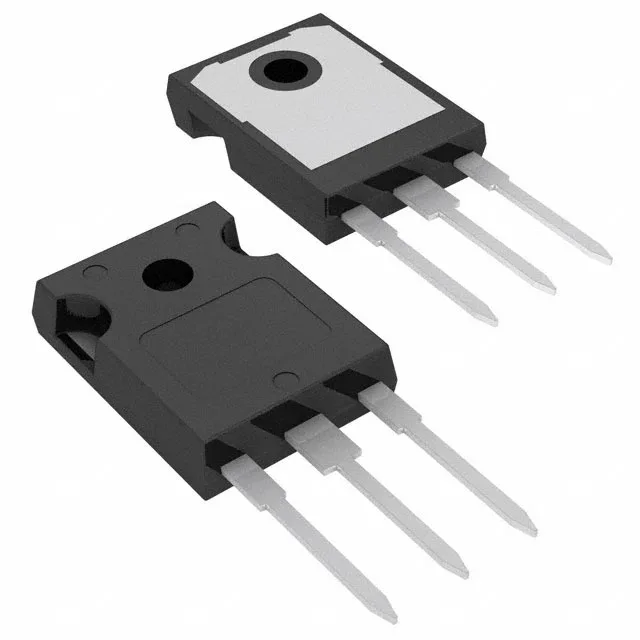

onsemi FGH40T120SMD-F155
MPNFGH40T120SMD-F155
End of Life
IGBT 1200V 80A 555W TO247-3
$14.3Ref. price · indicative, final on quote
PackagingTO-247-3
RoHSROHS3 Compliant
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| IGBT type | Trench Field Stop |
| Input type | Standard |
| Mounting | Through Hole |
| Voltage - collector emitter breakdown | 1200 V |
| Current - collector (Ic) | 80 A |
| Current - collector pulsed | 160 A |
| Power - max | 555 W |
| Operating temperature | -55°C ~ 175°C (TJ) |
| Package | Tube |
| Gate charge | 370 nC |
| Case | TO-247-3 |
| Test condition | 600V, 40A, 10Ohm, 15V |
| Switching energy | 2.7mJ (on), 1.1mJ (off) |
| Td (on/off) @ 25°C | 40ns/475ns |
| Vce(on) (Max) @ vge, ic | 2.4V @ 15V, 40A |
| Reverse recovery time | 65 ns |
