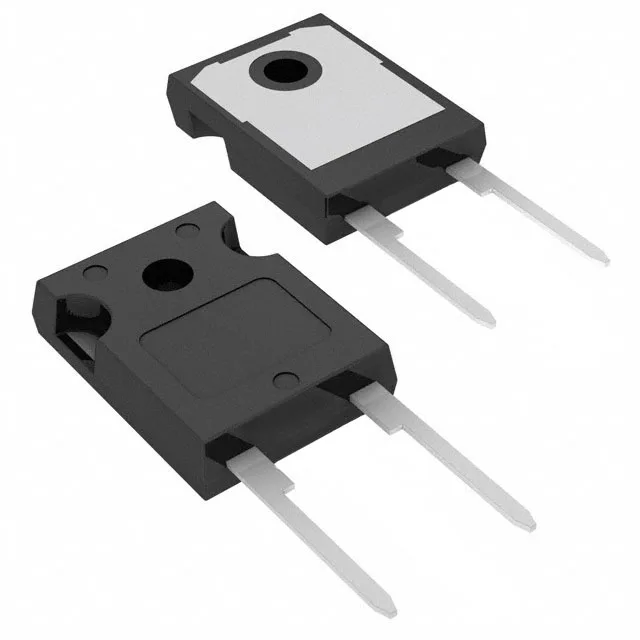

onsemi FFSH2065B-F085
MPNFFSH2065B-F085
End of Life
DIODE SIL CARB 650V 20A TO247-2
$8.46Ref. price · indicative, final on quote
PackagingTO-247-2
RoHSROHS3 Compliant
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Through Hole |
| Voltage - DC reverse (Vr) | 650 V |
| Voltage - forward (Vf) (Max) @ if | 1.7 V @ 20 A |
| Current - reverse leakage @ vr | 40 µA @ 650 V |
| Current - average rectified | 20A |
| Operating temperature - junction | -55°C ~ 175°C |
| Grade | Automotive |
| Speed | No Recovery Time > 500mA (Io) |
| Package | Tube |
| Technology | SiC (Silicon Carbide) Schottky |
| Qualification | AEC-Q101 |
| Case | TO-247-2 |
| Capacitance @ vr, | 866pF @ 1V, 100kHz |
| Reverse recovery time | 0 ns |
