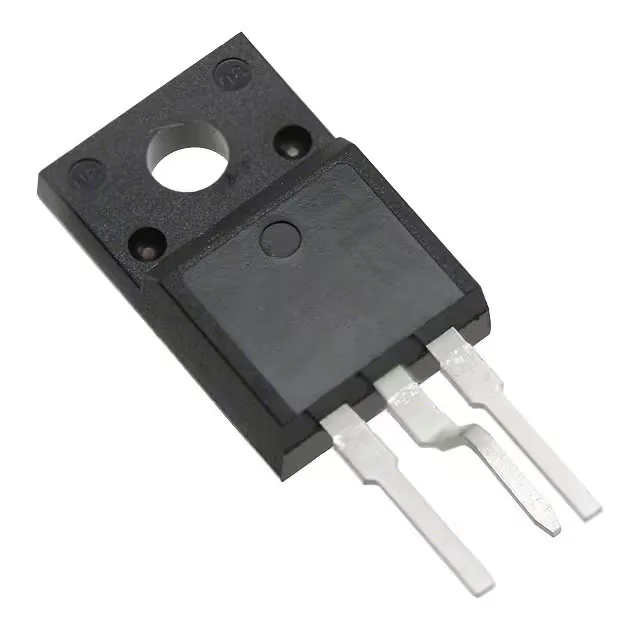

onsemi FDPF51N25YDTU
MPNFDPF51N25YDTU
End of Life
MOSFET N-CH 250V 51A TO220F-3
$1.81Ref. price · indicative, final on quote
PackagingTO-220-3 Full Pack, Formed Leads
SeriesUniFET™
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | UniFET™ |
| FET type | N-Channel |
| Mounting | Through Hole |
| Drain to source voltage | 250 V |
| Drive voltage (Max rds on, min rds on) | 10V |
| Current - continuous drain (Id) @ 25°C | 51A (Tc) |
| Power dissipation | 38W (Tc) |
| Operating temperature | -55°C ~ 150°C (TJ) |
| Package | Bulk |
| Vgs | ±30V |
| Technology | MOSFET (Metal Oxide) |
| Case | TO-220-3 Full Pack, Formed Leads |
| Vgs(th) (Max) @ id | 5V @ 250µA |
| Rds on (Max) @ id, vgs | 60mOhm @ 25.5A, 10V |
| Gate charge (Qg) (Max) @ vgs | 70 nC @ 10 V |
| Input capacitance (Ciss) (Max) @ vds | 3410 pF @ 25 V |
