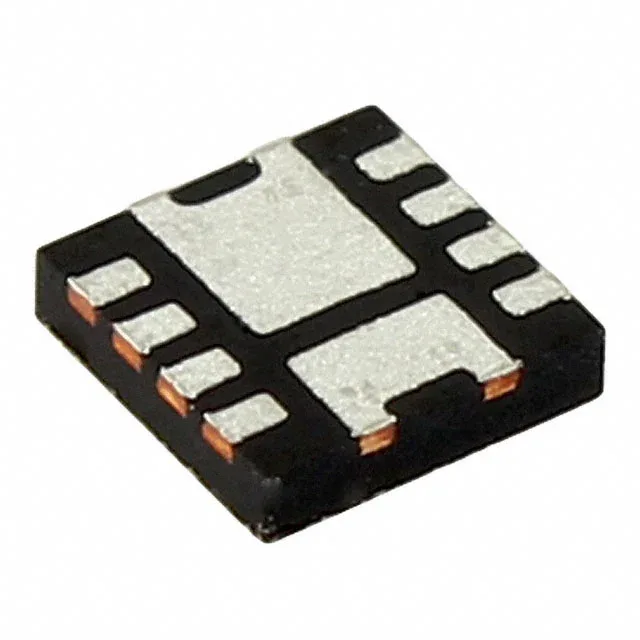

FDPC8012S
onsemi · PowerTrench® Series
MOSFET 2N-CH 25V 13A/26A PWR CLP
[IN STOCK] In Stock: 2 pcs
MOQ 1 · Tape & Reel (TR); Cut Tape (CT) · RoHS · EIA-481 · DAP/DDP · T/T
Technical specifications
| Parameter / Attribute | Specification / Value |
|---|---|
| Series | PowerTrench® |
| FET type | 2 N-Channel (Dual) Asymmetrical |
| Mounting | Surface Mount |
| Drain to source voltage | 25V |
| Current - continuous drain (Id) @ 25°C | 13A, 26A |
| Power - max | 800mW, 900mW |
| Operating temperature | -55°C ~ 150°C (TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| FET feature | Logic Level Gate |
| Case | 8-PowerWDFN |
| Vgs(th) (Max) @ id | 2.2V @ 250µA |
| Rds on (Max) @ id, vgs | 7mOhm @ 12A, 4.5V |
| Gate charge (Qg) (Max) @ vgs | 8nC @ 4.5V |
| Input capacitance (Ciss) (Max) @ vds | 1075pF @ 13V |
