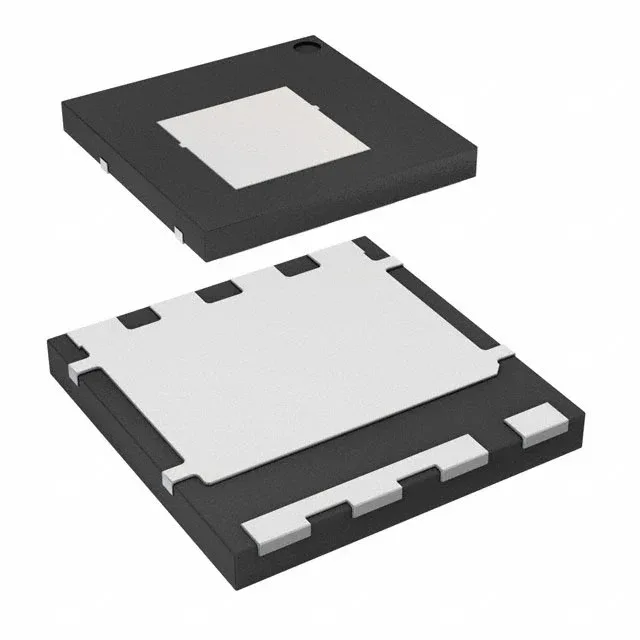

onsemi FDMT800152DC
MPNFDMT800152DC
End of Life
MOSFET N-CH 150V 8 DUAL COOL88
$6.01Ref. price · indicative, final on quote
Packaging8-PowerVDFN
RoHSROHS3 Compliant
SeriesDual Cool™, PowerTrench®
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Dual Cool™, PowerTrench® |
| FET type | N-Channel |
| Mounting | Surface Mount |
| Drain to source voltage | 150 V |
| Drive voltage (Max rds on, min rds on) | 6V, 10V |
| Current - continuous drain (Id) @ 25°C | 13A (Ta), 72A (Tc) |
| Power dissipation | 3.2W (Ta), 113W (Tc) |
| Operating temperature | -55°C ~ 150°C (TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Vgs | ±20V |
| Technology | MOSFET (Metal Oxide) |
| Case | 8-PowerVDFN |
| Vgs(th) (Max) @ id | 4V @ 250µA |
| Rds on (Max) @ id, vgs | 9mOhm @ 13A, 10V |
| Gate charge (Qg) (Max) @ vgs | 83 nC @ 10 V |
| Input capacitance (Ciss) (Max) @ vds | 5875 pF @ 75 V |
