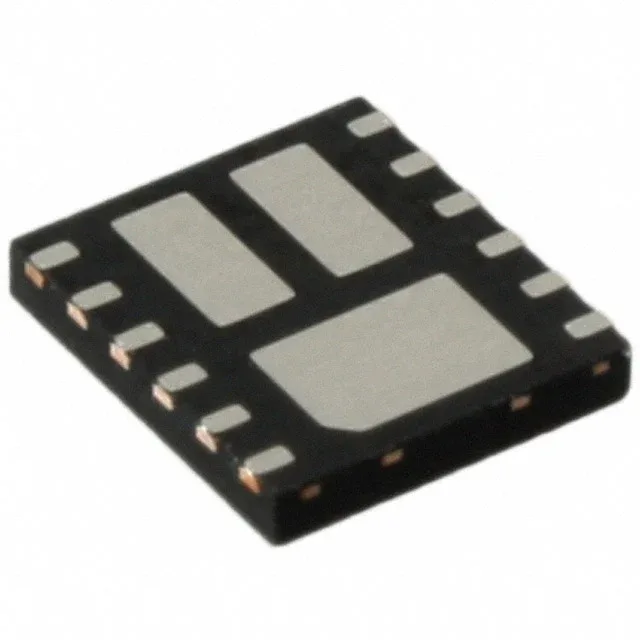

onsemi FDMQ86530L
MPNFDMQ86530L
End of Life
MOSFET 4N-CH 60V 8A 12MLP
$3.08Ref. price · indicative, final on quote
Packaging12-WDFN Exposed Pad
RoHSROHS3 Compliant
SeriesGreenBridge™ PowerTrench®
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | GreenBridge™ PowerTrench® |
| Mounting | Surface Mount |
| Drain to source voltage | 60V |
| Current - continuous drain (Id) @ 25°C | 8A |
| Power - max | 1.9W |
| Operating temperature | -55°C ~ 150°C (TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Technology | MOSFET (Metal Oxide) |
| FET feature | Logic Level Gate |
| Configuration | 4 N-Channel (Full Bridge) |
| Case | 12-WDFN Exposed Pad |
| Vgs(th) (Max) @ id | 3V @ 250µA |
| Rds on (Max) @ id, vgs | 17.5mOhm @ 8A, 10V |
| Gate charge (Qg) (Max) @ vgs | 33nC @ 10V |
| Input capacitance (Ciss) (Max) @ vds | 2295pF @ 30V |
