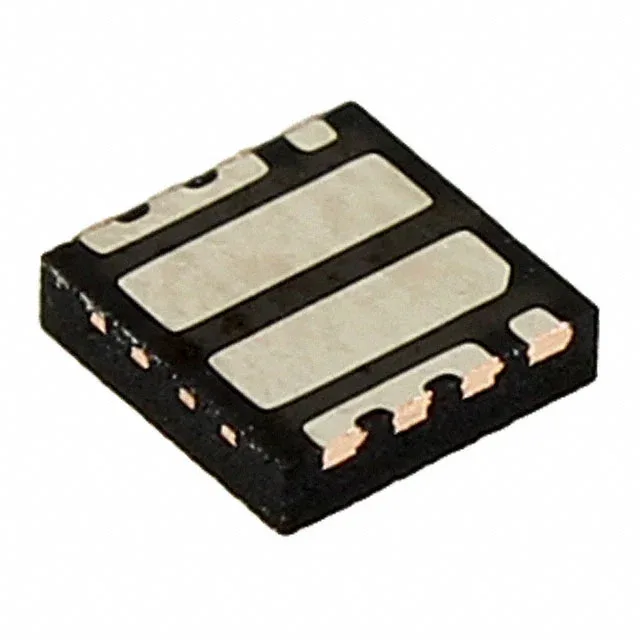

onsemi FDMC89521L
MPNFDMC89521L
End of Life
MOSFET 2N-CH 60V 8.2A 8PWR33
$1.99Ref. price · indicative, final on quote
Packaging8-PowerWDFN
RoHSROHS3 Compliant
SeriesPowerTrench®
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | PowerTrench® |
| Mounting | Surface Mount |
| Drain to source voltage | 60V |
| Current - continuous drain (Id) @ 25°C | 8.2A (Ta) |
| Power - max | 1.9W (Ta), 16W (Tc) |
| Operating temperature | -55°C ~ 150°C (TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Technology | MOSFET (Metal Oxide) |
| FET feature | Logic Level Gate |
| Configuration | 2 N-Channel (Dual) |
| Case | 8-PowerWDFN |
| Vgs(th) (Max) @ id | 3V @ 250µA |
| Rds on (Max) @ id, vgs | 17mOhm @ 8.2A, 10V |
| Gate charge (Qg) (Max) @ vgs | 24nC @ 10V |
| Input capacitance (Ciss) (Max) @ vds | 1635pF @ 30V |
