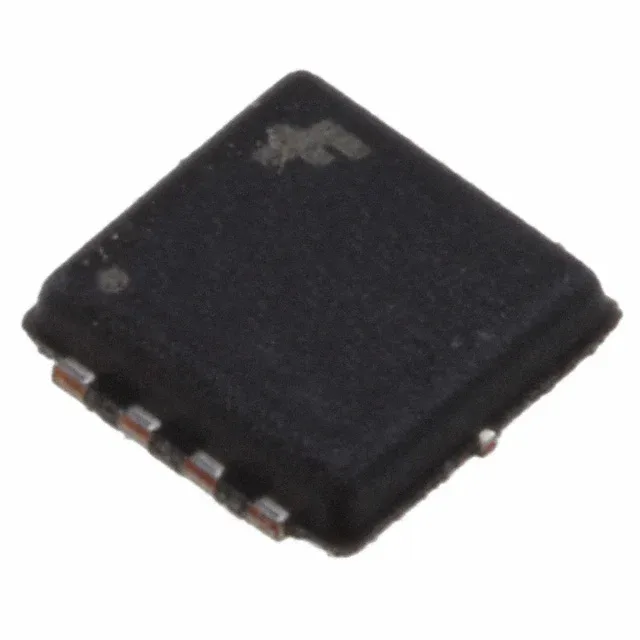

FDMC7672S
onsemi · PowerTrench®, SyncFET™ Series
MOSFET N-CH 30V 14.8A/18A 8MLP
[IN STOCK] In Stock: 241 pcs
MOQ 1 · Tape & Reel (TR); Cut Tape (CT) · RoHS · EIA-481 · DAP/DDP · T/T
Technical specifications
| Parameter / Attribute | Specification / Value |
|---|---|
| Series | PowerTrench®, SyncFET™ |
| FET type | N-Channel |
| Mounting | Surface Mount |
| Drain to source voltage | 30 V |
| Drive voltage (Max rds on, min rds on) | 4.5V, 10V |
| Current - continuous drain (Id) @ 25°C | 14.8A (Ta), 18A (Tc) |
| Power dissipation | 2.3W (Ta), 36W (Tc) |
| Operating temperature | -55°C ~ 150°C (TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Vgs | ±20V |
| Technology | MOSFET (Metal Oxide) |
| Case | 8-PowerWDFN |
| Vgs(th) (Max) @ id | 3V @ 1mA |
| Rds on (Max) @ id, vgs | 6mOhm @ 14.8A, 10V |
| Gate charge (Qg) (Max) @ vgs | 42 nC @ 10 V |
| Input capacitance (Ciss) (Max) @ vds | 2520 pF @ 15 V |
