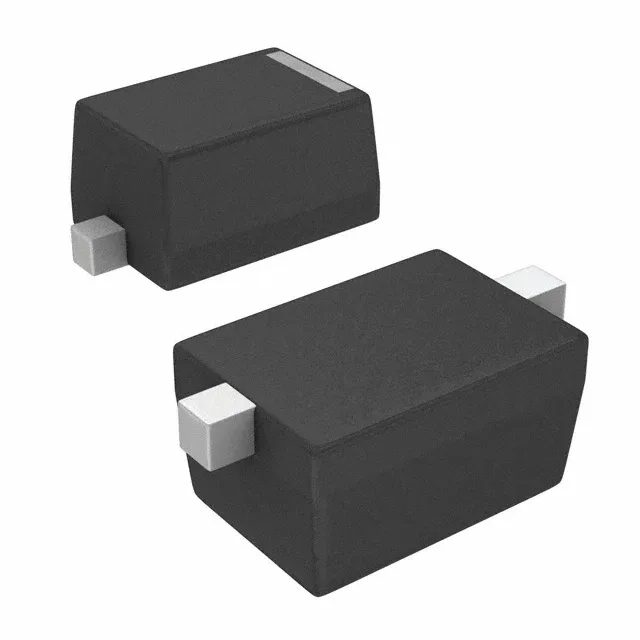

BAT54XV2
onsemi
[IN STOCK] In Stock: 5,575 pcs
MOQ 50 · Tape & Reel (TR) Cut Tape (CT) · RoHS · EIA-481 · DAP/DDP · T/T
Technical specifications
| Parameter / Attribute | Specification / Value |
|---|---|
| Mounting | Surface Mount |
| Voltage - DC reverse (Vr) | 30 V |
| Voltage - forward (Vf) (Max) @ if | 800 mV @ 100 mA |
| Current - reverse leakage @ vr | 2 µA @ 25 V |
| Current - average rectified | 200mA |
| Operating temperature - junction | 125°C (Max) |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Technology | Schottky |
| Case | SC-79, SOD-523F |
| Capacitance @ vr, | 10pF @ 1V, 1MHz |
| Reverse recovery time | 5 ns |
BAT54XV2
