The onsemi 74AC14MTCX is a hex inverter from the 74AC series, integrating six independent inverter gates each with a single input. The Schmitt trigger action on every input provides hysteresis, which cleans up noisy or slow-rising edges — a common requirement in signal conditioning for clock lines, switch debounce, or sensor interfaces where a clean logic transition is needed. Quiescent current is a maximum of 2 µA, making it suitable for power-sensitive designs where the inverter bank sits idle most of the time. Output drive capability is symmetrical at 24 mA source and 24 mA sink, which is sufficient to drive a standard CMOS load or a low-power LED indicator directly. Propagation delay is 10 ns maximum at 5V with a 50 pF load, placing it in the mid-speed range for the 74AC family — fast enough for most control and data-path applications below 50 MHz.
onsemi 74AC series hex inverter, 74AC14MTCX, Schmitt trigger inputs, 6 circuits, 1 input per circuit, 14-TSSOP package, 2V to 6V supply, -40°C to 85°C.
$0.64Ref. price · indicative, final on quote

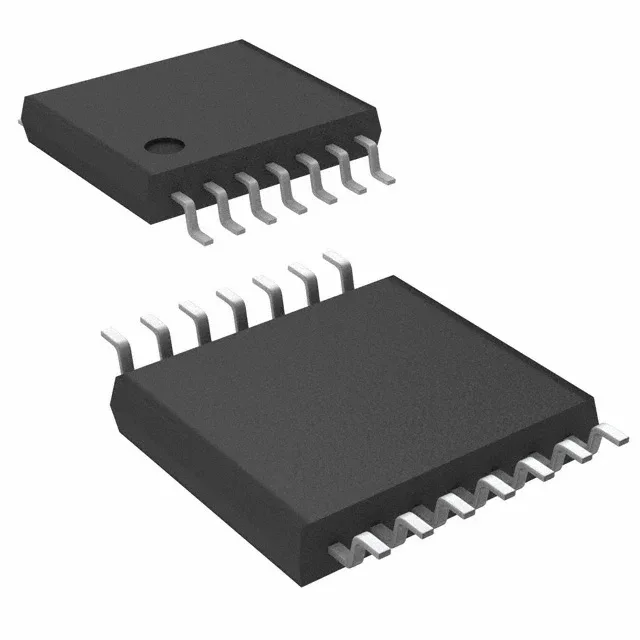

Packaging14-TSSOP (0.173", 4.40mm Width)
StockIn Stock (27)
Lead timeIn Stock wk
MOQ1 pcs
- 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
- Date & lot codes on quoteStated per line before you commit; label photos on request.
- MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | 74AC |
| Logic type | Inverter |
| Mounting type | Surface Mount |
| Voltage | 2V ~ 6V |
| Current - quiescent | 2 µA |
| Current - output high, low | 24mA, 24mA |
| Number of inputs | 1 |
| Operating temperature | -40°C ~ 85°C |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Schmitt Trigger |
| Case | 14-TSSOP (0.173\", 4.40mm Width) |
| Number of circuits | 6 |
| Input logic level - low | 0.5V ~ 1.1V |
| Input logic level - high | 2.2V ~ 3.9V |
| Max propagation delay @ v, max CL | 10ns @ 5V, 50pF |
Product details
Frequently asked questions
What compliance documentation does onsemi provide for 74AC14MTCX?
The part is ROHS3 compliant. onsemi provides a declaration of compliance and material composition data per standard industry practice. No UL or IEC certification is listed for this logic IC.
