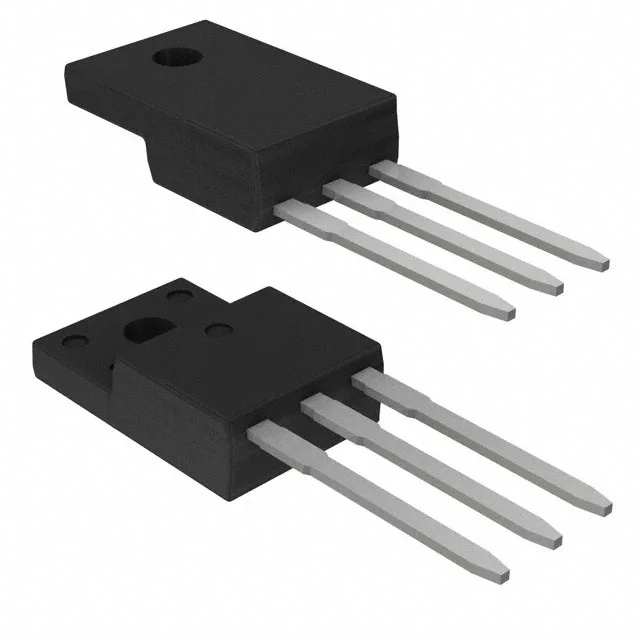

onsemi 2SK4085LS-1E
MPN2SK4085LS-1E
Obsolete
$1.3000Ref. price · indicative, final on quote
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| FET type | N-Channel |
| Mounting | Through Hole |
| Drain to source voltage | 500 V |
| Drive voltage (Max rds on, min rds on) | 10V |
| Current - continuous drain (Id) @ 25°C | 11A (Tc) |
| Power dissipation | 2W (Ta), 40W (Tc) |
| Operating temperature | 150°C(TJ) |
| Package | Tube |
| Vgs | ±30V |
| Technology | MOSFET (Metal Oxide) |
| Case | TO-220-3 Full Pack |
| Rds on (Max) @ id, vgs | 430mOhm @ 8A, 10V |
| Gate charge (Qg) (Max) @ vgs | 46.6 nC @ 10 V |
| Input capacitance (Ciss) (Max) @ vds | 1200 pF @ 30 V |
